Refrigerant Pressure Sensor / Switch, HVAC
>>
A/C Compressor High Pressure Cutoff Switch
A/C Compressor High Pressure Cutoff Switch

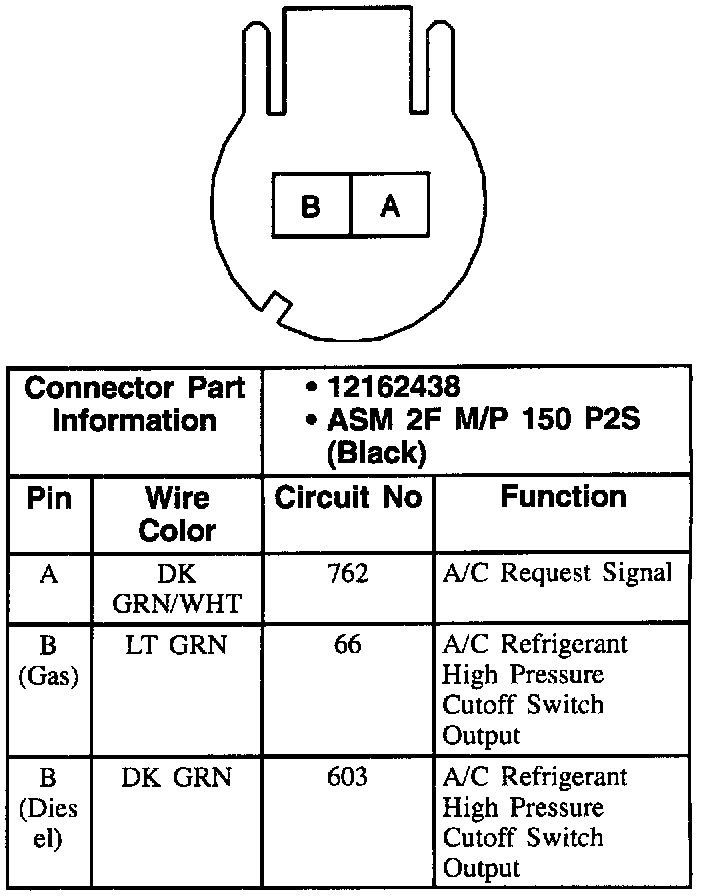

A/C Compressor High Pressure Cutoff Switch Connector:
