Torque Converter Clutch Solenoid, A/T
>>
Torque Converter Clutch Pulse Width Modulation Solenoid
Torque Converter Clutch Pulse Width Modulation Solenoid

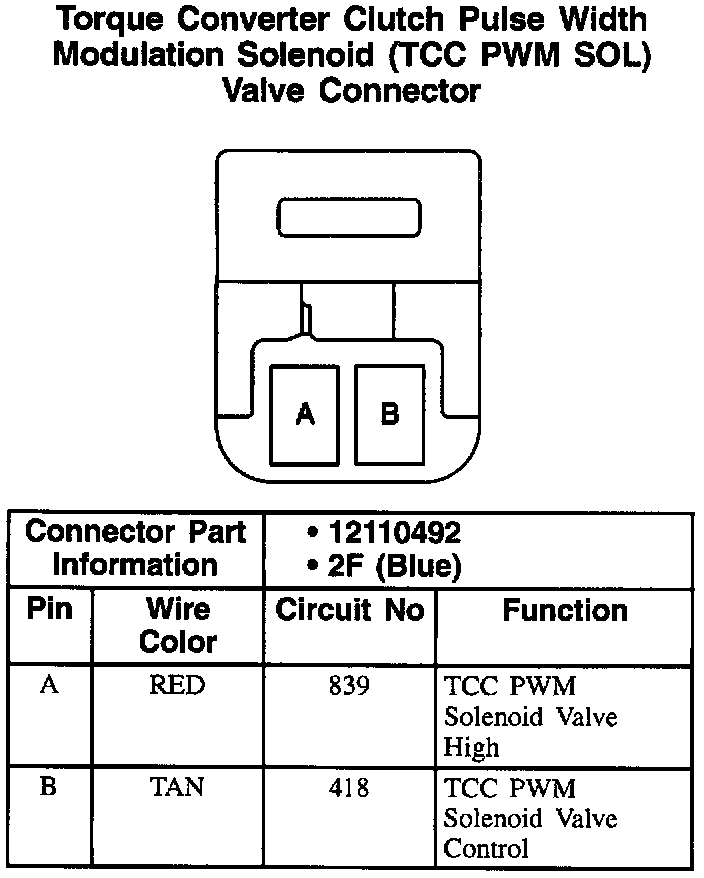

Torque Converter Clutch Pulse Width Modulation Solenoid (TCC PWM SOL) Valve Connector:
