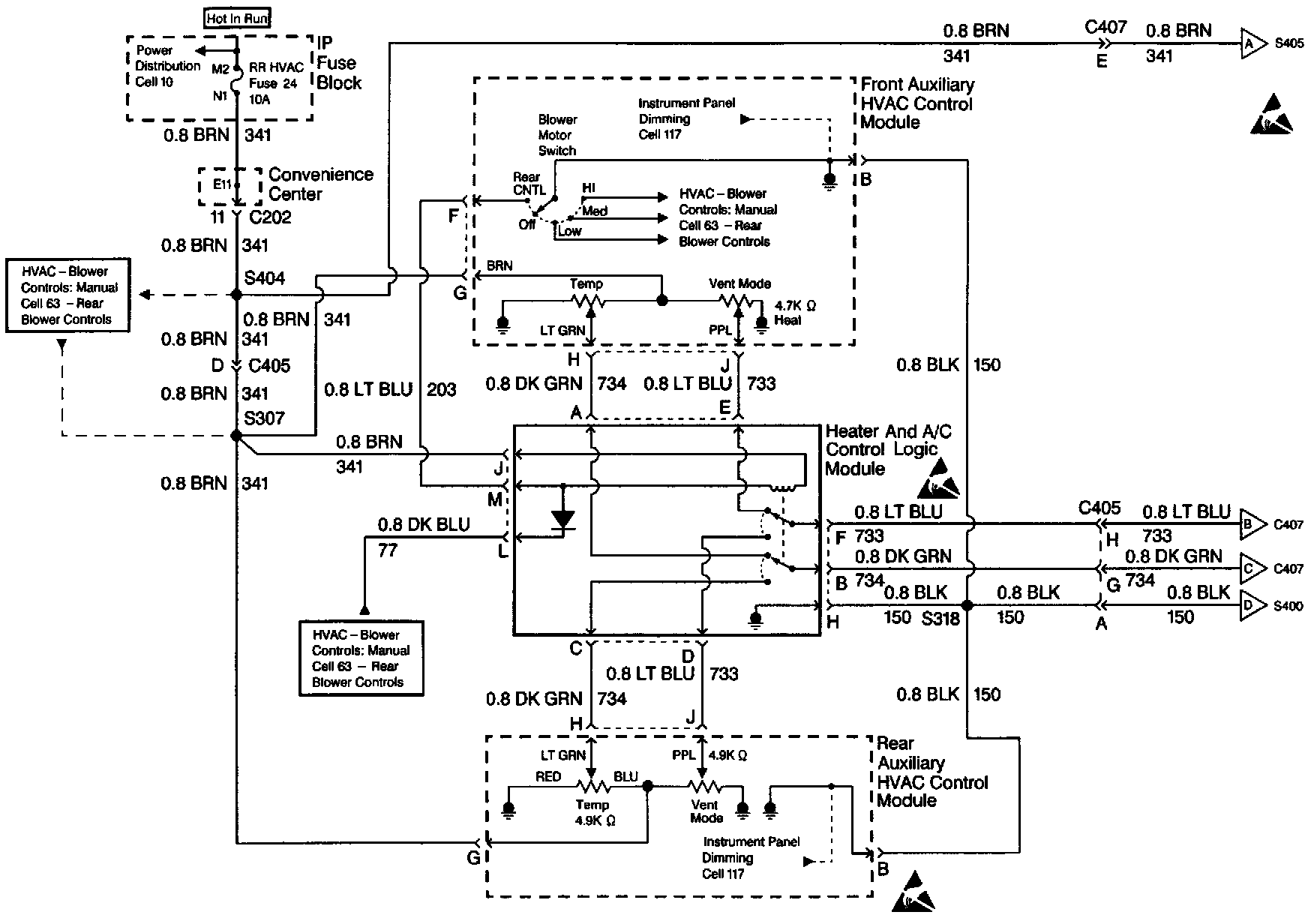

Passenger Van With Rear Auxiliary Heating and Air Conditioning

HVAC Air Delivery And Temperature Control: Manual Rear Ventilation Controls: Passenger Van With Rear Auxiliary Heating And Air Conditioning:
