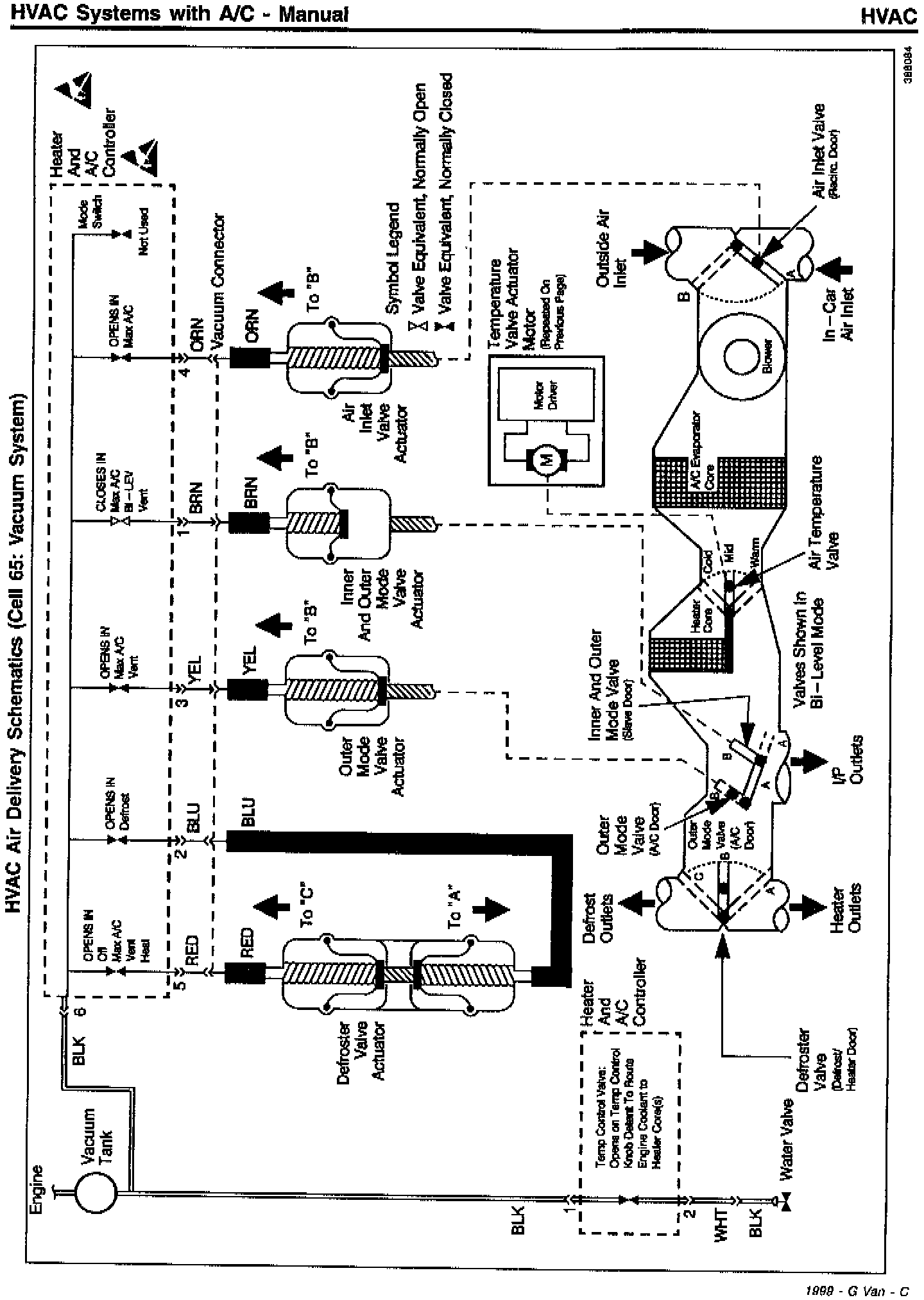

A/C Air Delivery/Temperature Control - Vacuum Schematic

File In Section: 1 HVAC

Bulletin No.: 86-12-10

Date: July, 1998

SERVICE MANUAL UPDATE

Subject:
Section 8A - Revised HVAC Air Delivery and Temperature Control: Manual - Vacuum Schematic

Models:
1998 Chevrolet and GMC G Van

This bulletin revises the HVAC Air Delivery and Temperature Control: Manual - Vacuum Schematic in Section BA of the 1998 Chevrolet and GMC Truck G Van Service Manual.





Please replace with the update.
