Operation CHARM: Car repair manuals for everyone.
Home >> Chevy Truck >> 1998 >> K 1500 Truck 4WD V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Fuses >> Instrument Panel (I/P) Fuse Block - Fuses >> Fuse 10 - AIR BAG

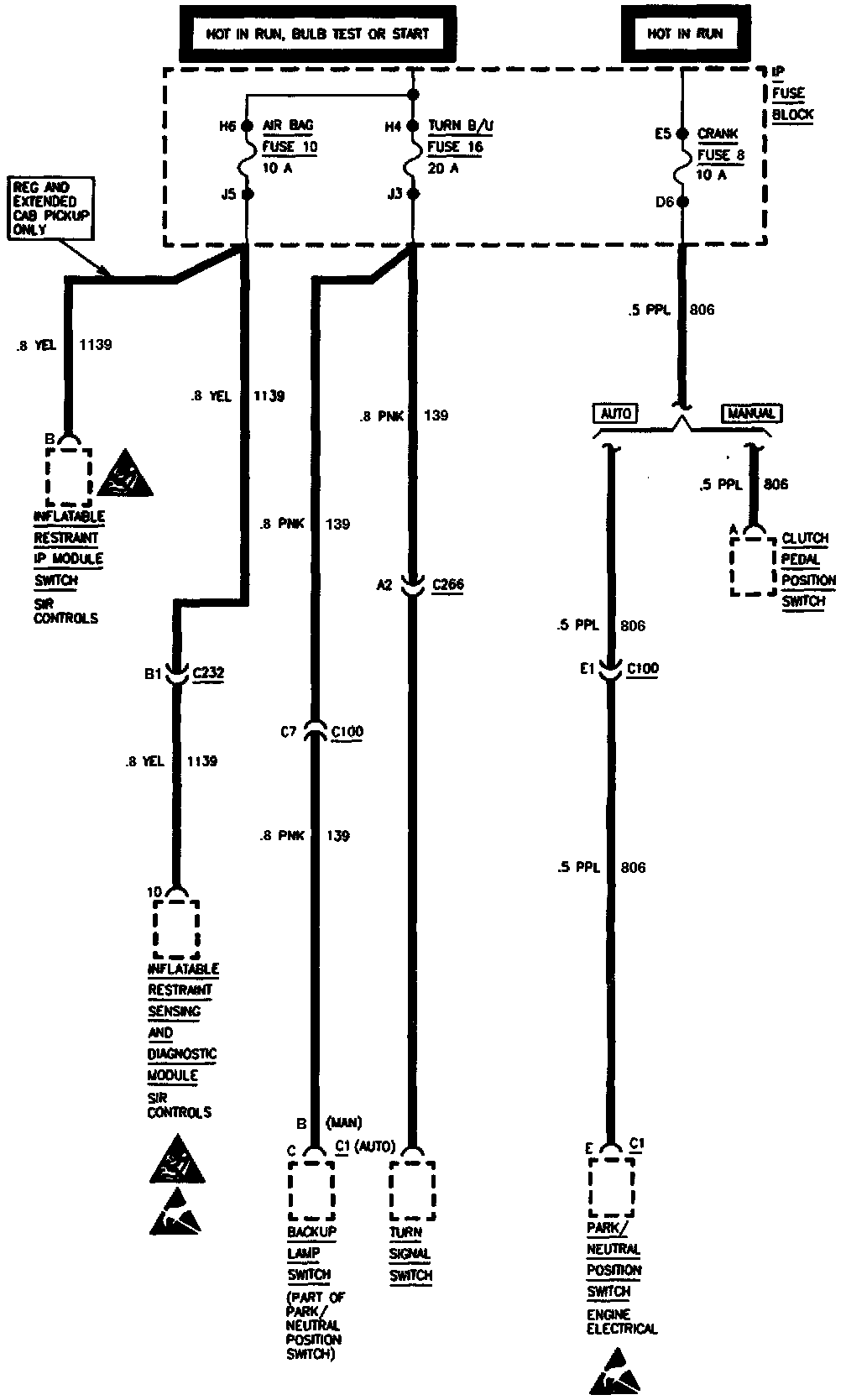

Fuse 10 - AIR BAG

Fuse Block Details (Part 6 Of 20):
