Switch Indicator Lamps Remain on - Two or More

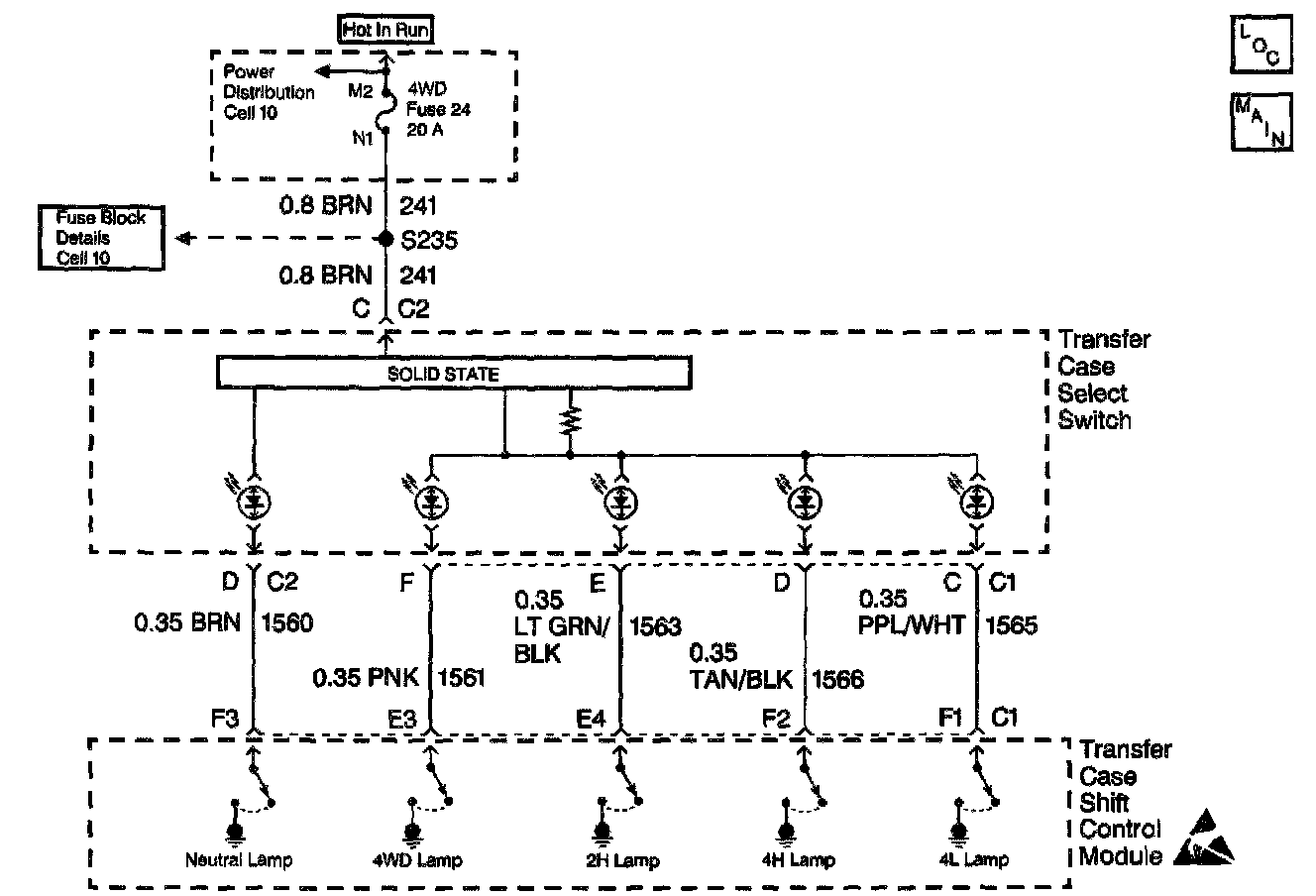

CIRCUIT DESCRIPTION
TEST DESCRIPTION

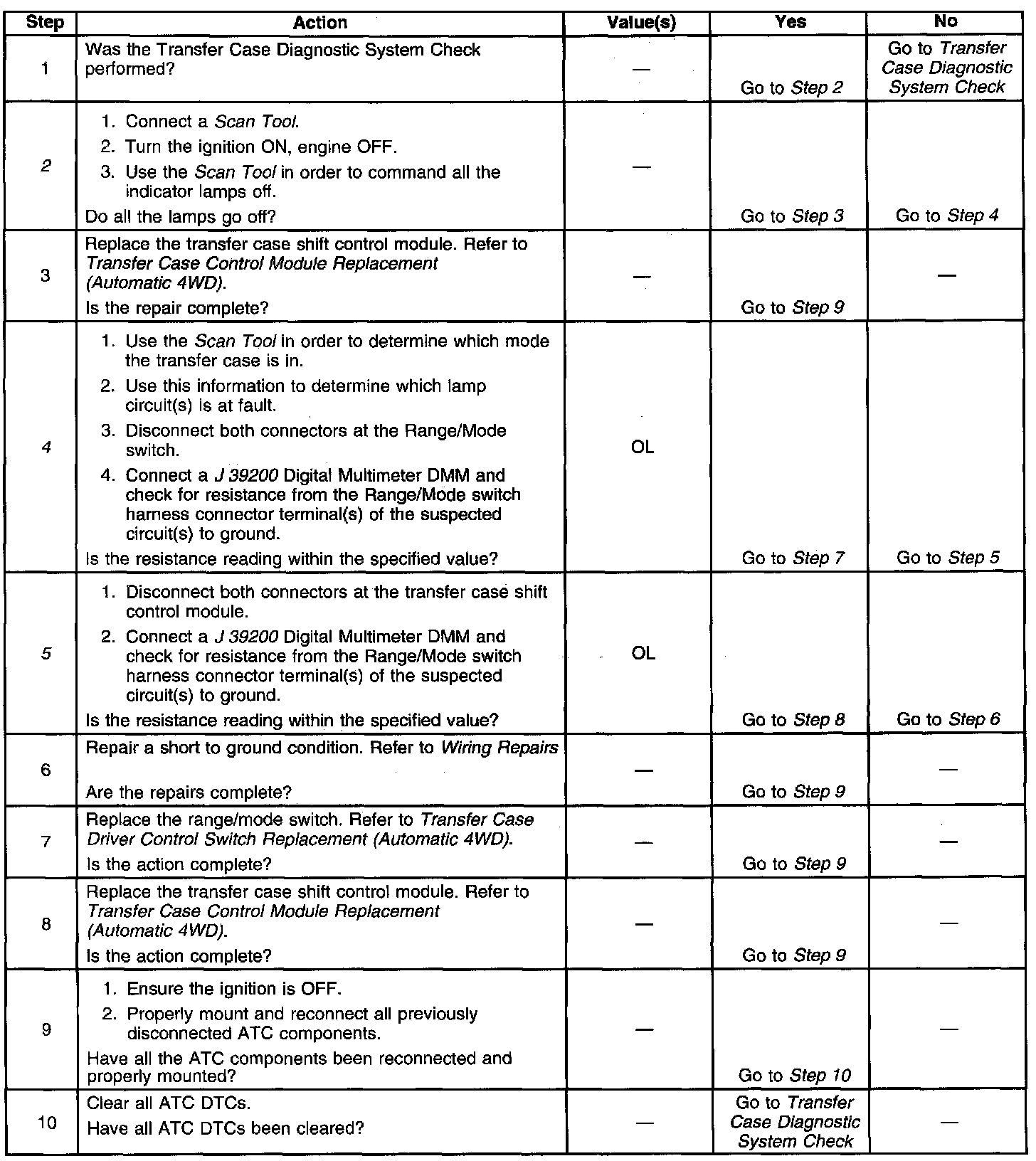

The number(s) below refer to the step number(s) on the diagnostic table.
2. This step determines if the transfer case shift control module can electronically control the all indicator lamp circuits.
4. This step determines which indicator lamp the transfer case shift control module is correctly commanding on.
5. This step determines whether there is a short to ground in one of the indicator lamp control circuits.
