Rear AUX Mode DR Motor Inoperative From Rear CNTRL Module

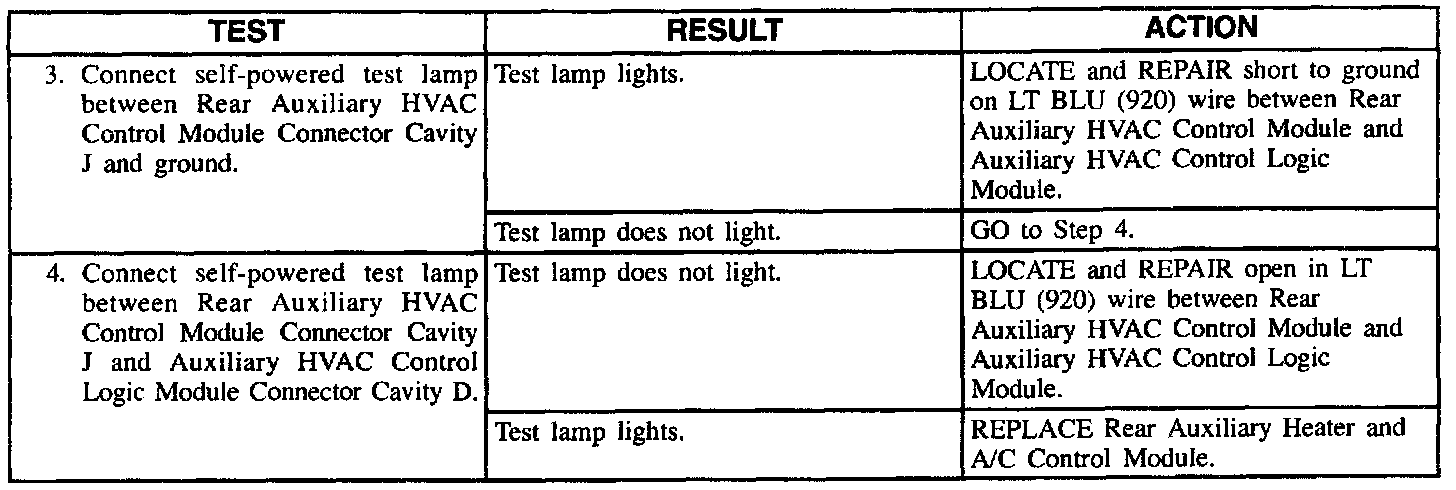

Rear Auxiliary Mode Door Motor Inoperative From Rear Control Module (Part 1 Of 2):



Rear Auxiliary Mode Door Motor Inoperative From Rear Control Module (Part 2 Of 2):
