Home >> Chevy Truck >> 1998 >> K 2500 Truck 4WD V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> System Diagram >> New Venture 241, 243 and Borg-Warner 4401, 4470-Selectable 4WD >> Transfer Case Control Connector End Views (Selectable 4WD >> Transfer Case Select Switch

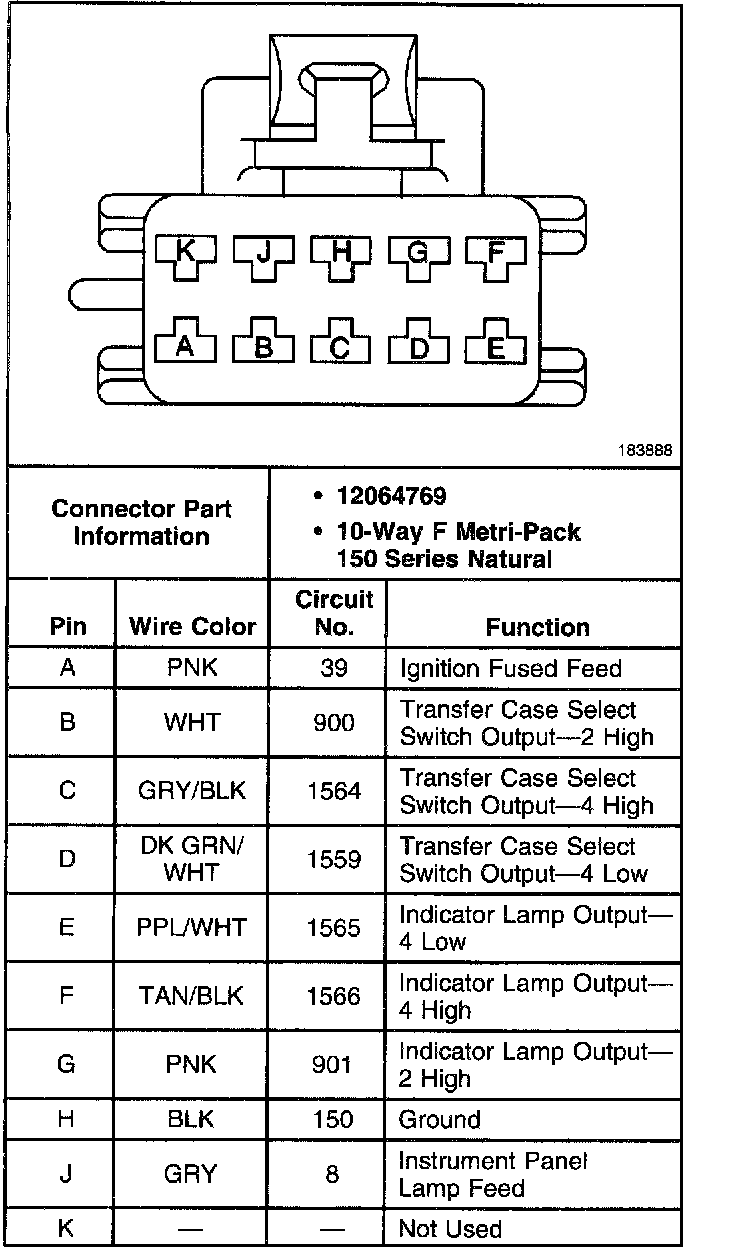

Transfer Case Select Switch
