Locking Differential Assemble (10.5 Inch Axle)

Locking Differential Assemble (10.5 Inch Axle)

1. Install the right thrust washer.
2. Install the right cam unit.
3. Install the following parts:
- The reaction blocks
- The reaction block thrust washer
- The pinion yoke
- The pinion gears
- The pinion thrust washers

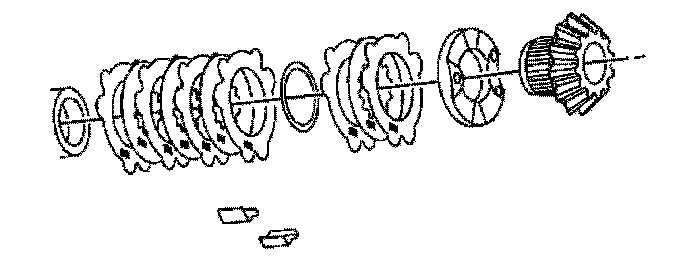

4. Install the left thrust washer.

Assemble the plates as shown.

5. Install the left side gear.
6. Install the latching bracket assembly.
7. Install the governor assembly.

The straight end of the latching bracket spring must be over and outside the governor assembly shaft.

8. Install the case halves together.

Hold the side gear in the left side case half.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

9. Install the differential case screws.

Tighten
Tighten the differential case screws to 17 Nm (13 lb ft).

10. Install the ring gear and the differential side bearings. Refer to Drive Pinion and Ring Gear Replacement Service and Repair and Differential Side Bearings Replacement Service and Repair.
