Home >> Chevy Truck >> 1998 >> S10/T10 Blazer 4WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Component >> Outside Remote Control Rear View Mirror Connector

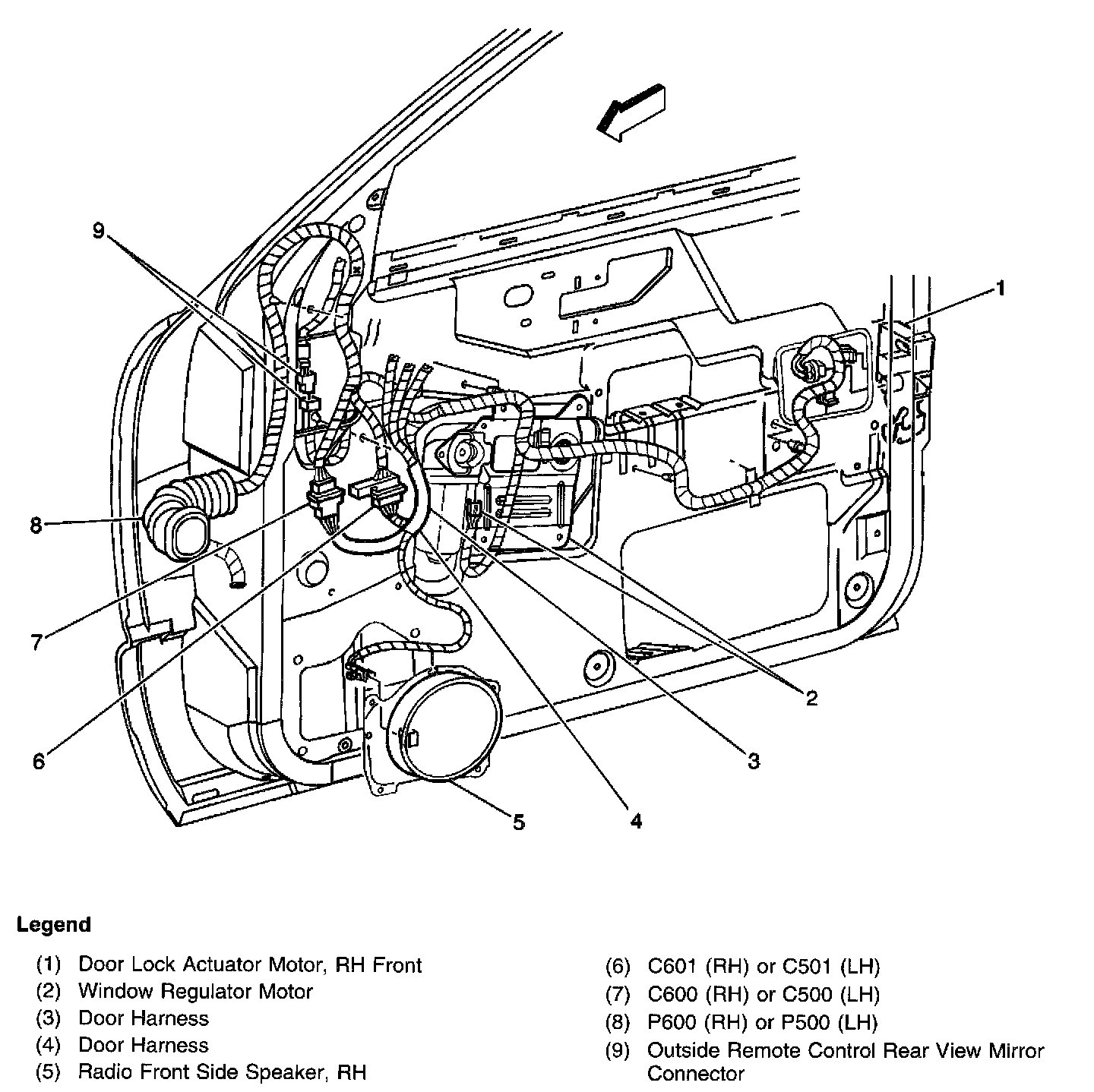

Outside Remote Control Rear View Mirror Connector

Doors (RF Shown, LF Opposite):
