Accessory Delay Module
>>
R/Side Door Jamb , Liftglass Jamb & Liftglass Ajar Switches
R/Side Door Jamb , Liftglass Jamb & Liftglass Ajar Switches

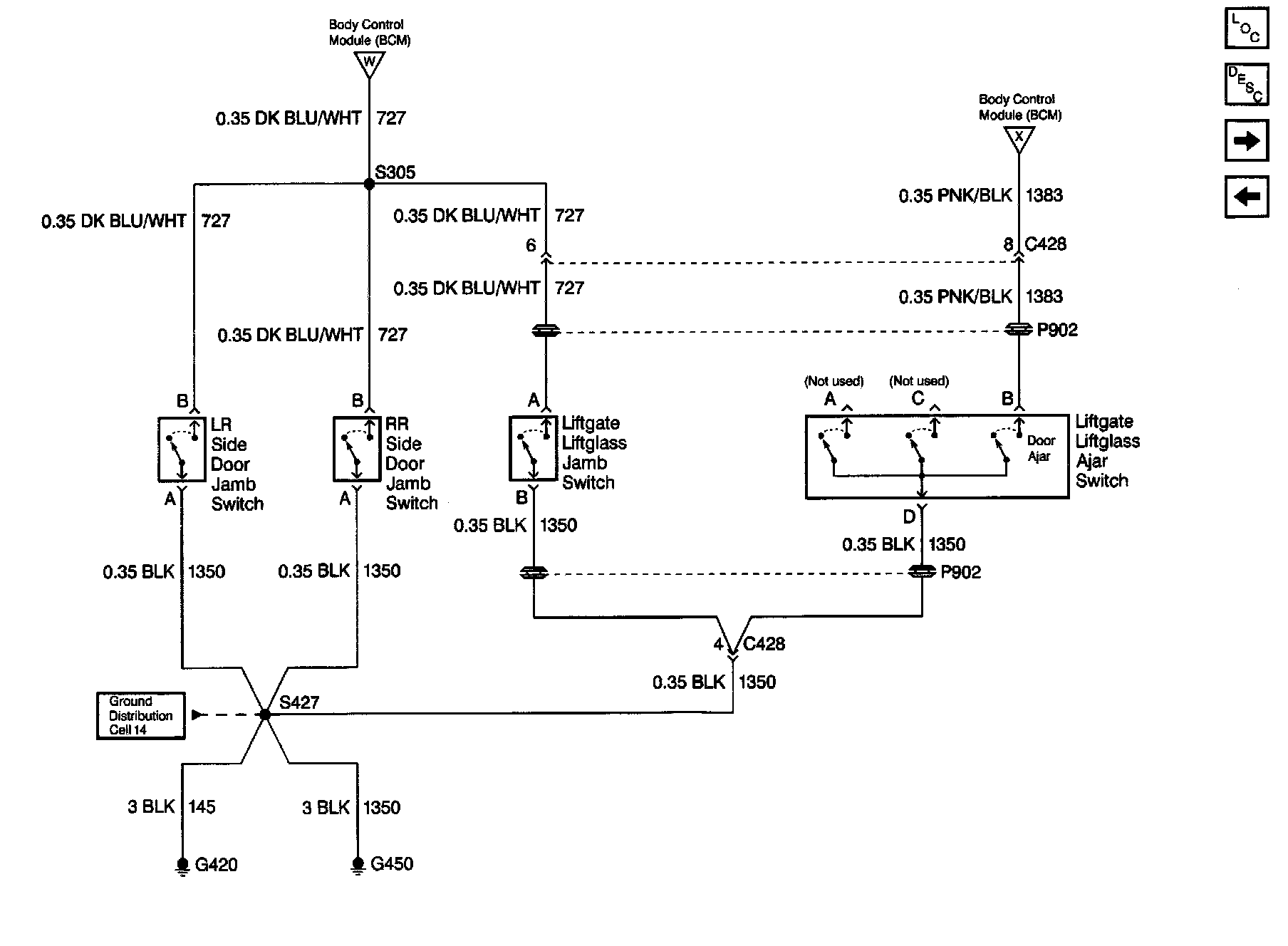

Retained Accessory Power (RAP): Rear Side Door Jamb Switches, Liftgate Liftglass Jamb Switch And Liftgate Liftglass Ajar Switch:
