Home >> Chevy Truck >> 1998 >> S10/T10 Blazer 4WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> System Diagram >> Starting System >> Automatic Transmission Starting

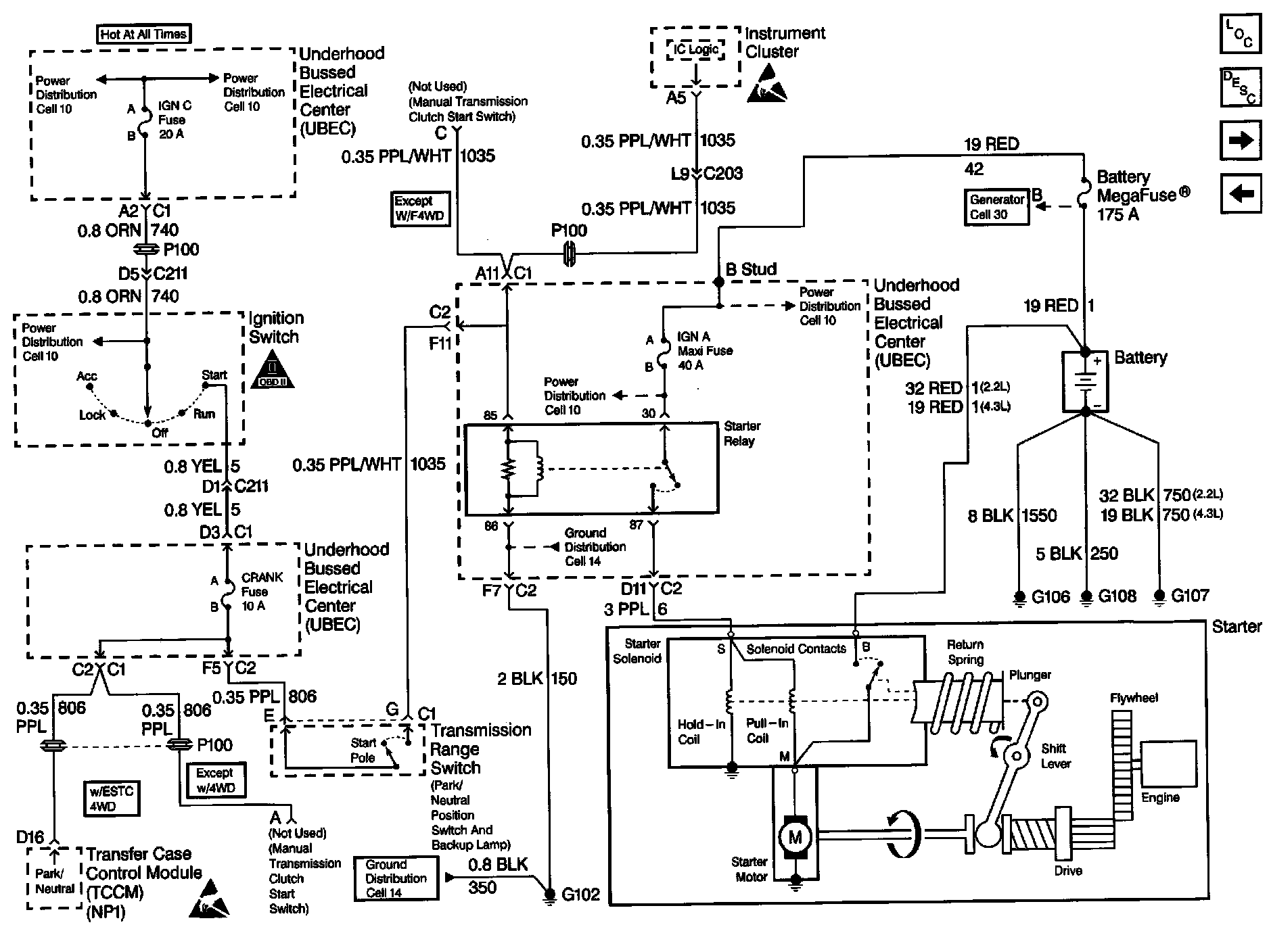

Automatic Transmission Starting

Starting And Charging Schematics: Automatic Transmission Starting:
