Home >> Chevy Truck >> 1998 >> S10/T10 Blazer 4WD V6-4.3L VIN X >> Repair and Diagnosis >> Wiper and Washer Systems >> Locations

Wiper and Washer Systems: Locations

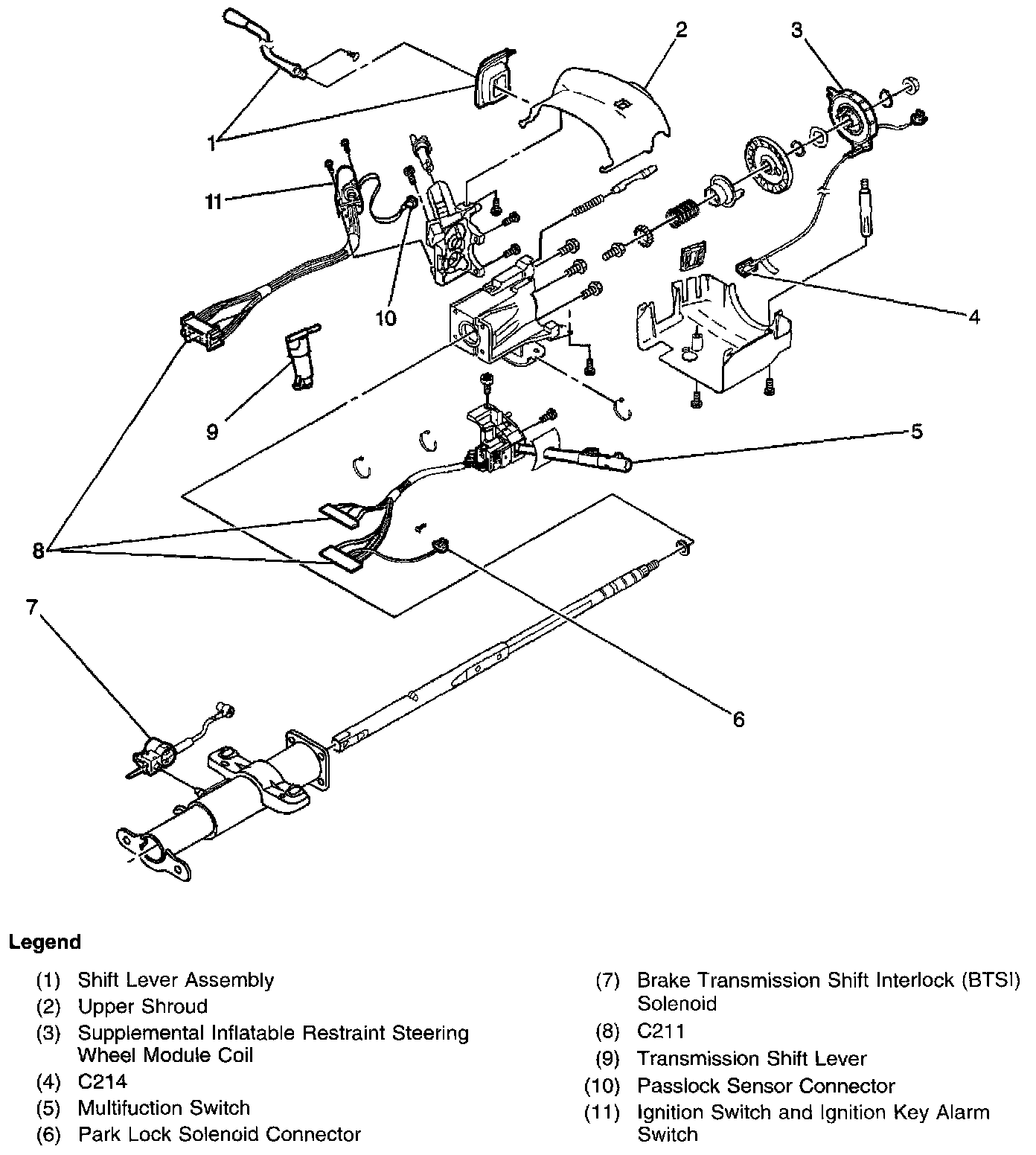

Steering Column:





SIR Steering Wheel Module And Coil:





LH side of the steering column
