P0112

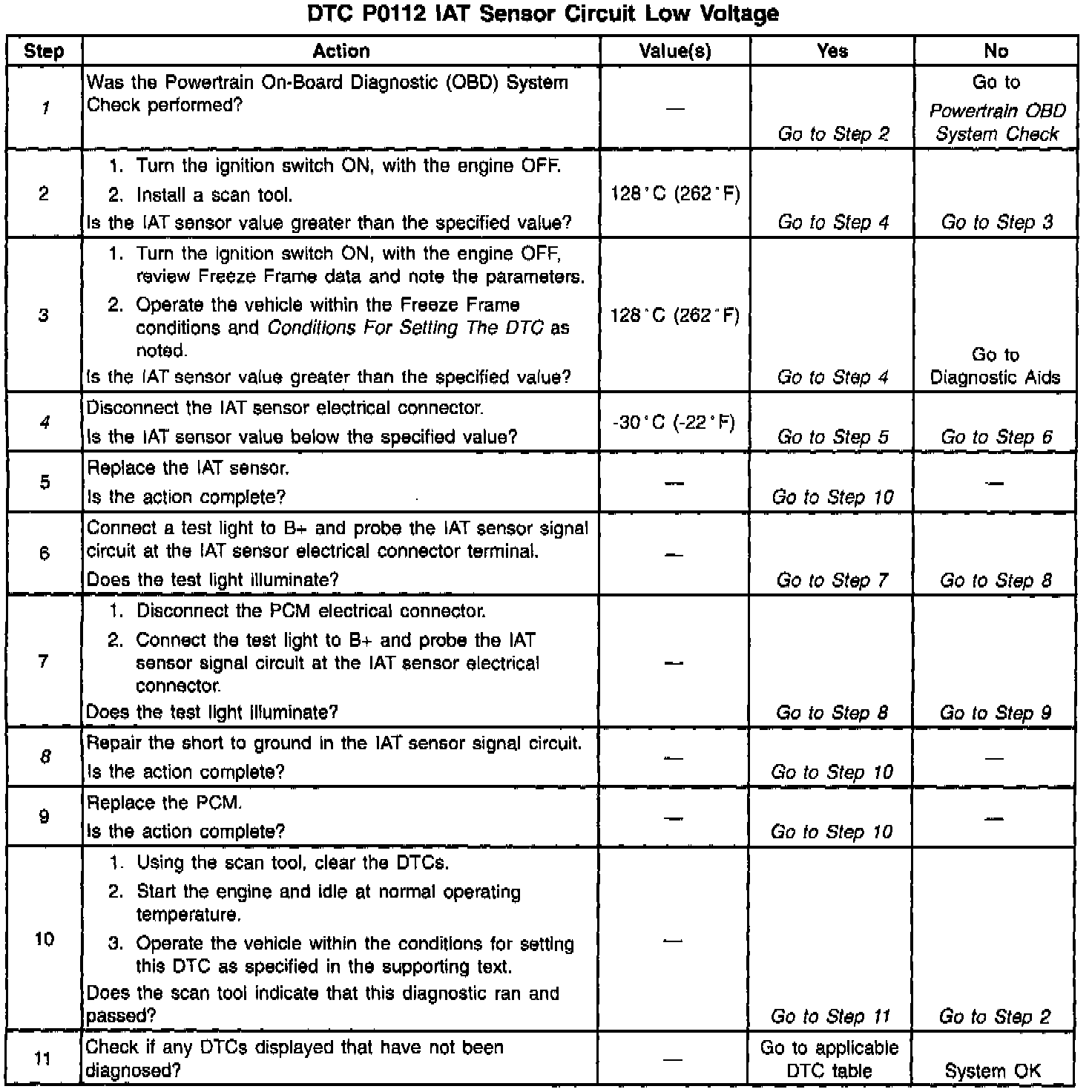

Diagnostic Chart:

Wiring Diagram:

CIRCUIT DESCRIPTION

The Intake Air Temperature (IAT) sensor is a thermistor which controls the signal voltage to the PCM. The PCM supplies a 5V reference and a ground to the sensor. When the air is cold, the resistance will be high. Whenever the intake air is warm, the resistance will be low.


CONDITIONS FOR SETTING THE DTC

^ The engine run time is greater than 320 seconds.

^ The vehicle speed sensor indicates that vehicle speed is greater than 15 mph (24 km/h).

^ The IAT sensor signal voltage indicates that the intake air temperature is greater than 128°C (262°F) for 3.125 seconds.


ACTION TAKEN WHEN THE DTC SETS

^ The Malfunction Indicator Lamp (MIL) illuminates.

^ The PCM records the operating conditions at the time the diagnostic fails. The Freeze Frame and Failure Records buffers stores this information.

^ A history DTC is stored.

^ The PCM will default to 60°C for intake air temperature. The scan tool will not show the defaulted value.


CONDITIONS FOR CLEARING THE MIL/DTC

^ The MIL will turn off after 3 consecutive ignition cycles in which the diagnostic runs without a fault.

^ A history DTC will clear after 40 consecutive warm up cycles without a fault.

^ A scan tool can clear the DTCs.


DIAGNOSTIC AIDS

^ When the vehicle is at ambient temperature, compare the IAT sensor to the Engine Coolant Temperature (ECT) sensor. The IAT sensor and the ECT sensor should be relatively close to each other.

^ Use the Temperature vs Resistance Values Table below to evaluate the possibility of a skewed sensor. Refer to Specifications / Electrical / Temperature vs Resistance.


TEST DESCRIPTION

Number(s) below refer to the step number(s) on the Diagnostic Table.

1. The Powertrain OBD System Check prompts the technician to complete some basic checks and store the freeze frame and failure records data on the scan tool if applicable. This creates an electronic copy of the data taken when the malfunction occurred. The information is then stored in the scan tool for later reference.

4. This step simulates a DTC P0113 condition. If the scan tool displays the specified value, the IAT signal circuit, the PCM are OK.

8. The replacement PCM must be programmed and the crankshaft position variation procedure must be performed. Refer to the latest Techline procedure for PCM reprogramming and also refer to Crankshaft Position (CKP) System Variation Learn Procedure for the Crankshaft Position Variation Procedure.
