P0507

Diagnostic Chart:

Wiring Diagram:

CIRCUIT DESCRIPTION

The PCM controls the air entering into the engine with an Idle Control (IAC) valve. In order to increase the idle rpm, the PCM commands the pintle inside the IAC valve away from the throttle body seat. This allows more air to bypass through the throttle blade. In order to decrease the rpm the PCM commands the pintle towards the throttle body seat. This reduces the amount of air bypassing the throttle blade. A scan tool will read the IAC valve pintle position in counts. The higher the counts, the more air that is allowed to bypass the throttle blade.

CONDITIONS FOR SETTING THE DTC

One or more of the following DTCs are not set: P0106, P0107, P0108, P0112, P0113, P0117, P0118, P0121, P0122, P0123, P0125, P0131, P0132, P0133, P0134, P0171, P0172, P0200, P0300 P0301, P0302, P0303, P0304, P0325, P0335, P0341, P0342, P0404, P0405, P0440, P0442, P0446, P0452, P0453, P0502, P0601, P0602, P0705, P0706, P1133, P1404, P1441.

^ The IAC valve reads less than 2 counts on the scan tool.

^ The barometer is greater than 72 kPa.

^ The Engine Coolant Temperature (ECT) sensor indicates temperature greater than 40°C (104°F).

^ The idle speed deviates below desired rpm by greater than 60 RPM for greater than 5 seconds.

^ The battery voltage is between 10 and 17 volts.

ACTION TAKEN WHEN THE DTC SETS

^ The Malfunction Indicator Lamp (MIL) will illuminate after two consecutive ignition cycles in which the diagnostic runs with the malfunction present.

^ The PCM will record the operating conditions at the time that the diagnostic fails. This information will store in the Freeze Frame and Failure Records buffers.

^ A history DTC stores.

CONDITIONS FOR CLEARING THE MIL/DTC

^ The MIL will turn off after 3 consecutive ignition cycles in which the diagnostic runs without a fault.

^ A history DTC will clear after 40 consecutive warm up cycles without a fault.

^ A scan tool can clear the DTCs.

DIAGNOSTIC AIDS

^ Inspect the IAC valve electrical connection for proper mating.

^ Inspect the wiring harness for damage.

^ Inspect for a disconnected, cracked or cut vacuum hoses.

^ Inspect for the proper installation of the crankcase ventilation valve.

^ Inspect the intake manifold and throttle body for leaks.

^ Inspect the intake manifold for cracks.

^ Refer to Symptoms / Rough, Unstable, or Incorrect Idle, Stalling.
Testing and Inspection

TEST DESCRIPTION

Number(s) below refer to the step number(s) on the Diagnostic Table.

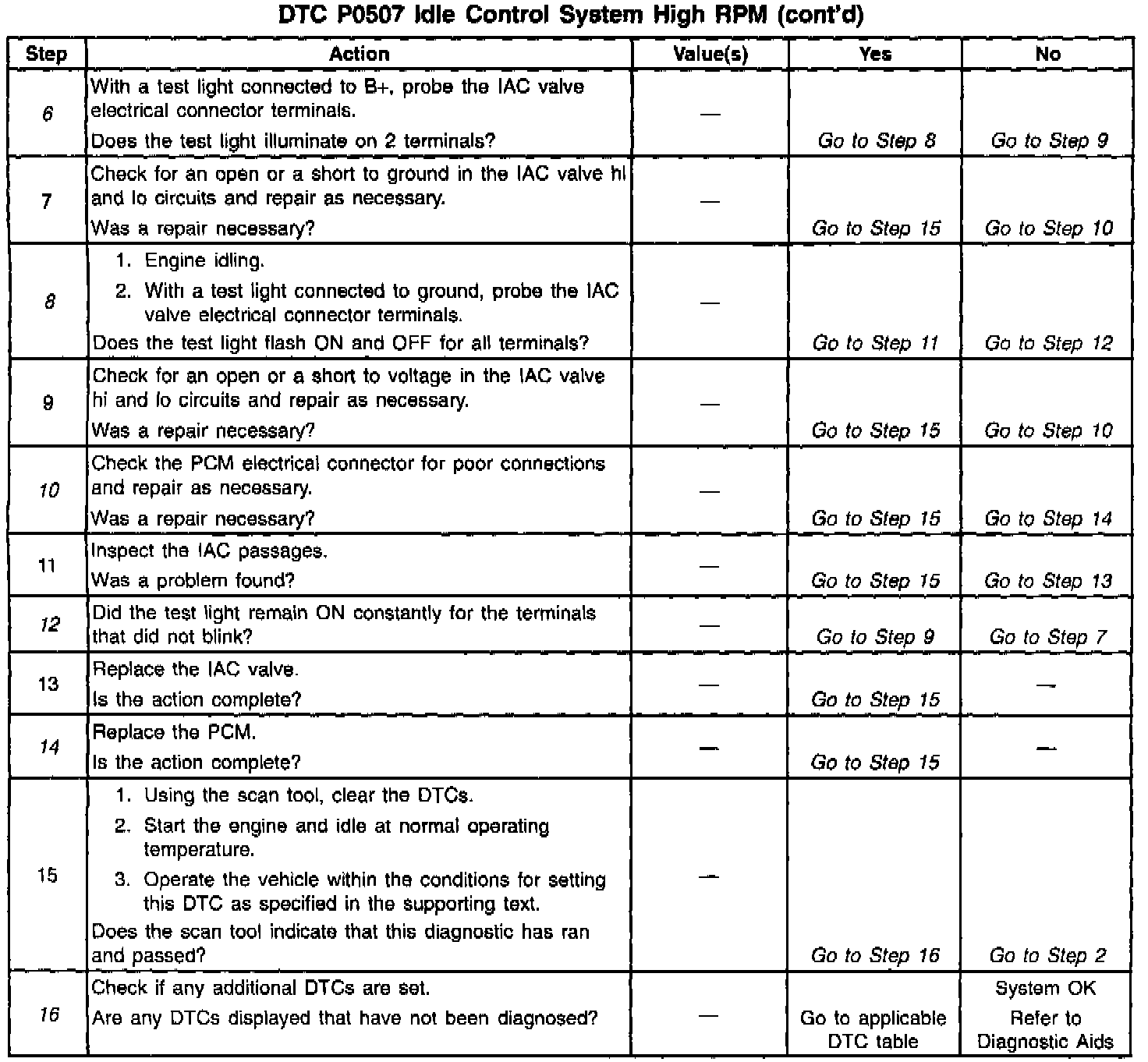

1. The Powertrain OBD System Check prompts the technician to complete some basic checks and store the freeze frame and failure records data on the scan tool if applicable. This creates an electronic copy of the data taken when the malfunction occurred. The information is then stored on the scan tool for later reference.

2. A normally operating IAC system will be able to be extended and retracted by a scan tool and change the engine idle RPM. Valve movement is verified by an engine RPM change.

3. If the scan tool was able to command the IAC valve smoothly, a malfunction may still exist internally within the IAC valve. This can be checked by checking the IAC valves internal resistance.

5. The IAC circuits always have ground or voltage signals on them in pairs. If the test light illuminates on more or less than 2 terminals, 1 of the circuits is shorted to voltage or open.

6. The IAC circuits always have ground or voltage signals on them in pairs. If the test light illuminates on more or less than 2 terminals, 1 of the circuits is shorted to ground or open.

8. The IAC circuits are constantly switched between ground and voltage so the test light should blink on all circuits when connected to ground.

10. Any circuitry, that is suspected as causing the intermittent complaint, should be thoroughly checked for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wiring connections or physical damage to the wiring harness.

12. A test light that remains ON constantly indicates that the circuit is shorted to voltage.

14. Replacement PCMs must be reprogrammed and the crankshaft position system variation procedure must be performed. Refer to the latest Techline information for PCM reprogramming and also refer to the Crankshaft Position (CKP) System Variation Learn Procedure for the Crankshaft Position System Variation Procedure.

16. If no malfunctions have been found at this point and no additional DTCs were set, refer to Diagnostic Aids for additional checks and information.
