P1404

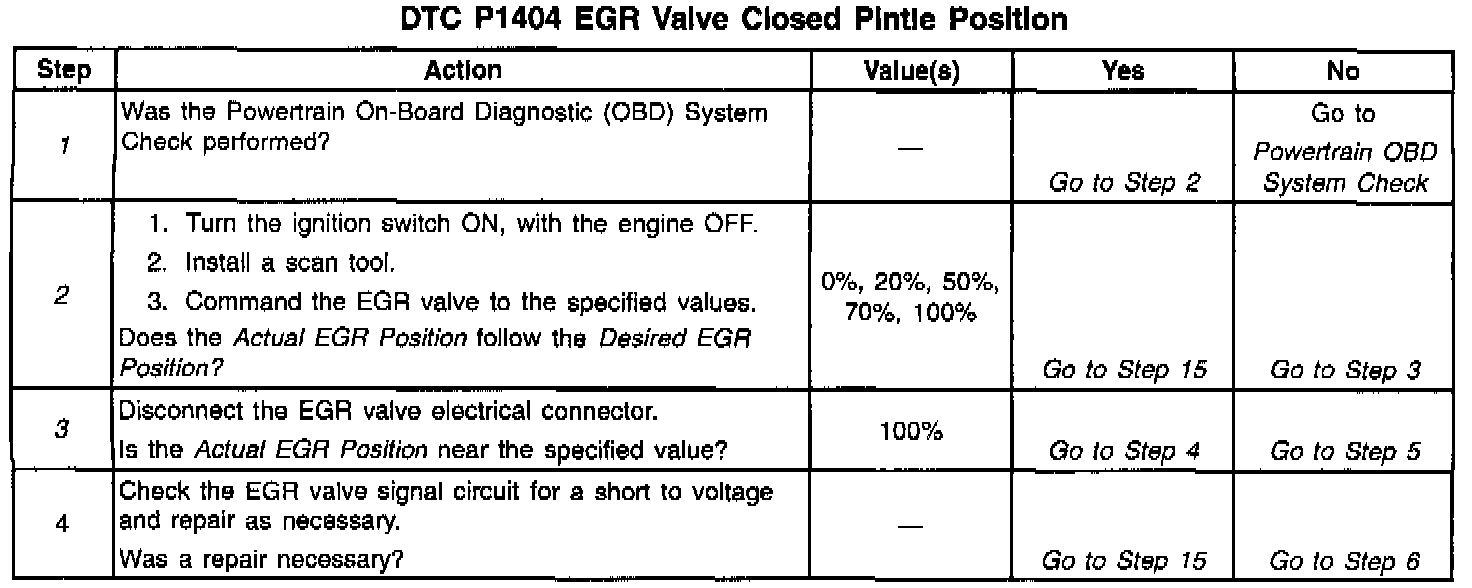

Diagnostic Chart:

Wiring Diagram:

CIRCUIT DESCRIPTION

An Exhaust Gas Recirculation (EGR) system lowers the Oxides of Nitrogen (NOx) emission levels that are caused by high combustion temperatures. This is accomplished by feeding small amounts of exhaust gases back into the combustion chamber. When the air/fuel mixture is diluted with the exhaust gases, the combustion temperatures are reduced.

A linear EGR valve is used on this system. The linear EGR valve is designed to accurately supply exhaust gases to the engine without the use of the intake manifold vacuum. The valve controls the exhaust flow going into the intake manifold from the exhaust manifold through an orifice with a PCM controlled pintle. The PCM controls the pintle position by using inputs from the Throttle Position (TP) sensor and the Manifold Absolute Pressure (MAP) sensor. The PCM then commands the EGR valve to operate when necessary by controlling an ignition signal through the PCM. This can be monitored on a scan tool as the Desired EGR Position.

The PCM monitors the results of the command through a feedback signal. By sending a 5 volt reference and a ground to the EGR valve, a voltage signal representing the EGR valve pintle position travels to the PCM. This feedback signal can also be monitored on a scan tool and is the actual position of the EGR pintle. The Actual EGR Position should always be near the commanded or the Desired EGR Position.

CONDITIONS FOR SETTING THE DTC

^ DTCs P0106, P0107, P0108, P0112, P0113, P0117, P0118, P0121, P0122, P0123, P0125, P0200, P0300-P0304, P0335, P0440, P0442, P0446, P0502, P0506, P0507, P1336 and P1441 are not set.

^ The ignition voltage is greater than 11.7 V.

^ The EGR commanded OFF (Desired EGR Position is 0 percent).

^ The actual EGR Position is greater than 15 percent for 20 seconds.

ACTION TAKEN WHEN THE DTC SETS

^ The Malfunction Indicator Lamp (MIL) will illuminate after two consecutive ignition cycles in which the diagnostic runs with the malfunction present.

^ The PCM will record the operating conditions at the time that the diagnostic fails. This information will store in the Freeze Frame and Failure Records buffers.

^ A history DTC stores.

CONDITIONS FOR CLEARING THE MIL/DTC

^ The MIL will turn OFF after three consecutive ignition cycles in which the diagnostic runs without a fault.

^ A history DTC will clear after 40 consecutive warm up cycles without a fault.

^ A scan tool clears the DTC(s).

DIAGNOSTIC AIDS

Due to the moisture that is associated with exhaust systems, the EGR valve may freeze and stick in colder weather at times. After the vehicle is brought into a warm shop for repairs, the valve warms and the problem disappears. By watching the Actual EGR and the Desired EGR Positions on a cold vehicle with a scan tool, you can easily verify the fault. Check the freeze frame data in order to determine if the DTC set when the vehicle was cold by viewing the Engine Coolant Temperature (ECT).

TEST DESCRIPTION

Number(s) below refer to the step number(s) on the Diagnostic Table.

1. The Powertrain OBD System Check prompts the technician to complete some basic checks and store the freeze frame and failure records data on the scan tool if applicable. This creates an electronic copy of the data taken when the malfunction occurred. The information is then stored on the scan tool for later reference.

2. Commanding the EGR valve open determines whether the EGR system can control the EGR valve accurately and if the malfunction is present.

3. When the EGR valve electrical connector is disconnected, the scan tool should display the Actual EGR Position as 0%. If it does not, the malfunction lies either in the EGR signal circuit or the PCM.

5. If the EGR valve 5.0 volt reference is shorted to voltage, the DVM will read battery voltage and additional DTCs may be set and engine performance will be poor.

6. The replacement PCM must be reprogrammed and the crankshaft position system variation procedure must be performed. Refer to the latest Techline procedures for PCM reprogramming and the Crankshaft Position (CKP) System Variation Learn Procedure portion of the service manual for the Crankshaft Position System Variation Procedure.

11. A poor electrical connection may have caused this DTC to set. The test light will still illuminate if the circuit is OK but the terminal connection was poor. Be sure to check the terminals for being backed out, improperly formed or damaged, and for poor tension.

13. All circuits to the EGR valve are OK at this point. The malfunction lies internally in the EGR valve and therefore must be replaced. Be sure all gasket material is removed from the EGR mounting surface. Even a small amount of material may cause a DTC P0401 to set. Refer to the EGR Valve Service and Repair for Service of the EGR valve.

14. Check the terminals for being backed out, improperly formed or damaged, and for poor tension.

15. Clearing the DTCs is a very important step for this diagnostic. The clearing function allows the EGR valve to relearn a new pintle position as the old position was inaccurate due to the malfunction that caused the DTC. The DTC must be cleared with the ignition switch ON, with the engine OFF or when the engine is idling. If the PCM sees a EGR command, the new pintle position will not be learned.

16. If no malfunctions have been found at this point and no additional DTCs were set, refer to the Diagnostic Aids for additional checks and information.
