U1041

Diagnostic Chart:

Wiring Diagram:

CIRCUIT DESCRIPTION

A Class II serial data communications system is used on this vehicle to allow various modules to communicate and share information with each other. This allows the vehicle electrical wiring to be reduced and the transmission and reception of module signals over a single wire. If a module cannot respond to the PCM, a DTC is stored.


CONDITIONS FOR SETTING THE DTC

^ The PCM cannot communicate with the Electronic Brake Control Module (EBCM) for a duration of 15 seconds after having previously established communications with the EBCM within that ignition cycle.

^ The Ignition switch in the Crank position for 15 seconds and the engine is not rotating due to a starter malfunction or an electrical malfunction, or the clutch pedal not depressed on vehicles with manual transmission applications.


ACTION TAKEN WHEN THE DTC SETS

^ The PCM will record operating conditions at the time the diagnostic fails. This information will be stored in the Failure Records buffer.

^ A history DTC is stored.


CONDITIONS FOR CLEARING THE MIL/DTC

^ A history DTC will clear after 40 consecutive warm up cycles without a fault.

^ A scan tool can clear the MIL/DTC(s).


DIAGNOSTIC AIDS

^ An intermittent problem may be caused by a poor connection, rubbed through wire insulation, or a wire that is broken inside the insulation.

^ Any circuitry, that is suspected as causing the intermittent complaint, should be thoroughly checked for the following conditions:

- Backed out terminals.

- Improper mating.

- Broken locks.

- Improperly formed.

- Damaged terminals.

- Poor terminal to wire connection.

^ Install an additional ground wire from the Instrument Panel Cluster (IPC) to the negative side of the battery if electrical interference is suspected.

Refer to Diagrams for additional diagnostic information.


TEST DESCRIPTION

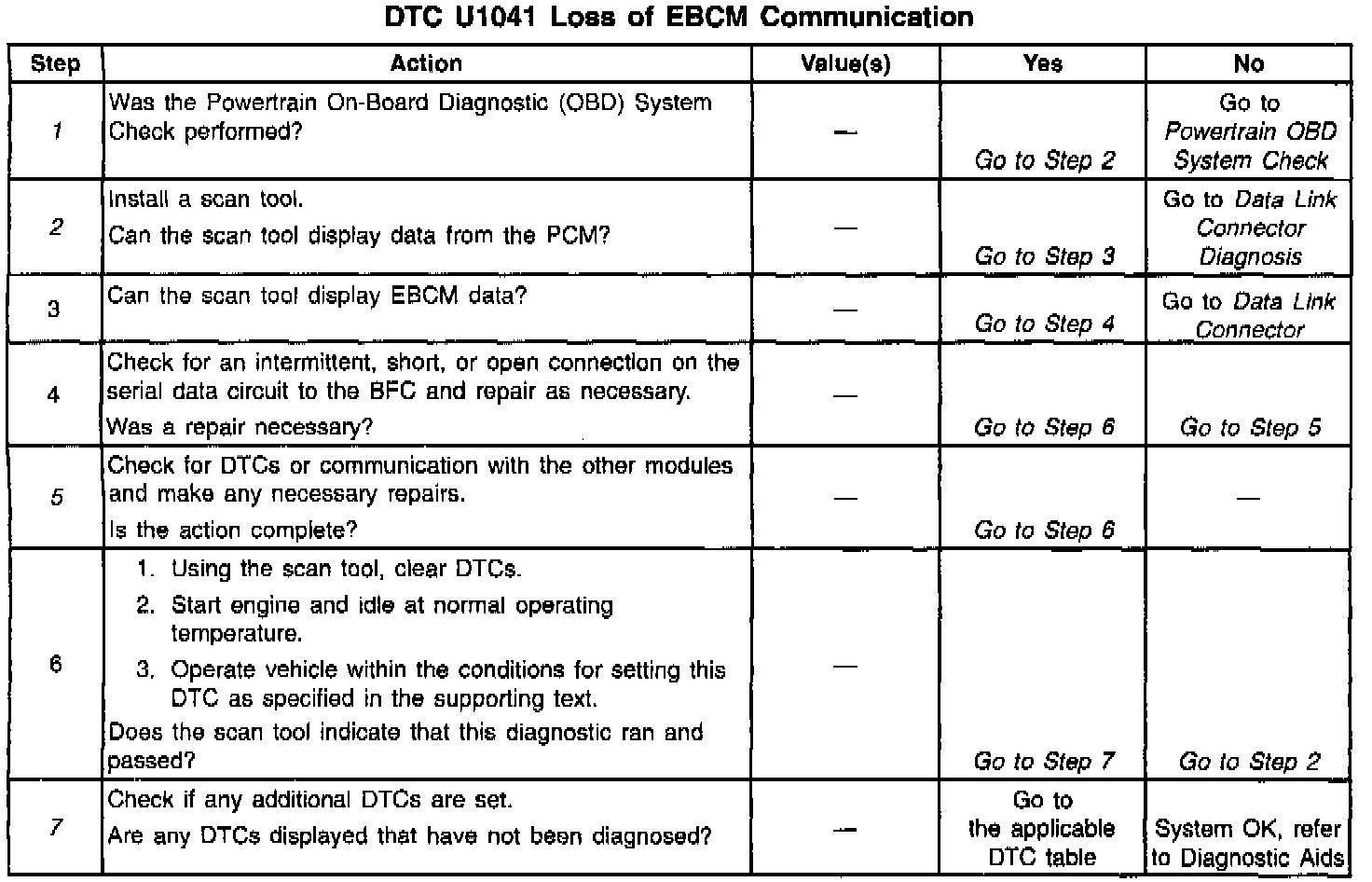

Number(s) below refer to the step number(s) on the Diagnostic Table.

1. The Powertrain OBD System Check prompts the technician to complete some basic checks and store the freeze frame and failure records data on the scan tool if applicable. This creates an electronic copy of the data taken when the fault occurred. The information is then stored in the scan tool for later reference.

2. A scan tool that cannot display PCM data indicates that a short, or open may exist on the serial data circuit. Refer to Data Link Connector Diagnosis for further diagnosis.
Data Link Connector Diagnosis

4. An intermittent short on the serial data circuit could cause this DTC to set. When the malfunction is present, the scan tool will lose communication with the PCM and the EBCM. Check for chaffed wiring or a faulty EBCM.

5. The DTC is intermittent when a scan tool can communicate with the PCM and the EBCM. DTCs with other modules may lead to a possible cause of the intermittent problem.

7. If no malfunctions have been found at this point and no additional DTCs were set, refer to Diagnostic Aids for additional checks and information.
