Garage Door Opener Module Replacement

REMOVAL PROCEDURE

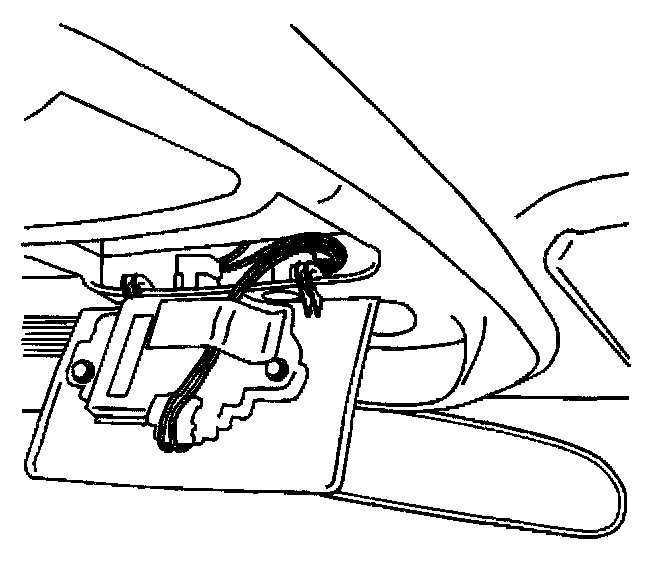

1. Open the universal transmitter compartment door. Use a flat-bladed tool at the rear of the door in order to carefully pry the door open.
2. Disconnect the electrical connector and remove the tape.
3. Remove the screws that retain the universal transmitter module to the door.
4. Remove the universal transmitter module from the door.

INSTALLATION PROCEDURE
1. Install the universal transmitter to the door.
2. Install the screws that retain the universal transmitter to the door.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

3. Connect the electrical connector and remove the tape.
4. Close the universal transmitter compartment door.
