B2752

DTC B2752 Horn Relay Coil Circuit Low:

CIRCUIT DESCRIPTION
CKT 28 is an input to the Body Control Module (BCM). The BCM monitors CKT 28 in order to determine if the horn circuit is shorted to ground.

CONDITIONS FOR THE DTC
^ When CKT 28 is shorted to ground for more than 184 seconds.
^ The system voltage is between 9.0-16.0 volts.
^ The above conditions exist for 184 seconds.

ACTION TAKEN WHEN THE DTC SETS
The horn will remain ON at all times.

CONDITIONS FOR CLEARING THE MIL/DTC
^ A current DTC will clear after the next ignition cycle that does not contain a fault.
^ A history DTC will clear after 100 consecutive ignition cycles without a fault present.
^ History and current DTCs can be cleared using a scan tool.

DIAGNOSTIC AIDS
^ Always diagnose the first DTC that is listed on the scan tool.
^ Verify that the scan tool displays DTC B2752 as a current code before you perform diagnostics.
^ Determine if the horn pad or the horn switch sticks.
^ Inspect for loose or poor connections at all of the related components.
^ Refer to Wiring Systems for intermittent and poor connections.

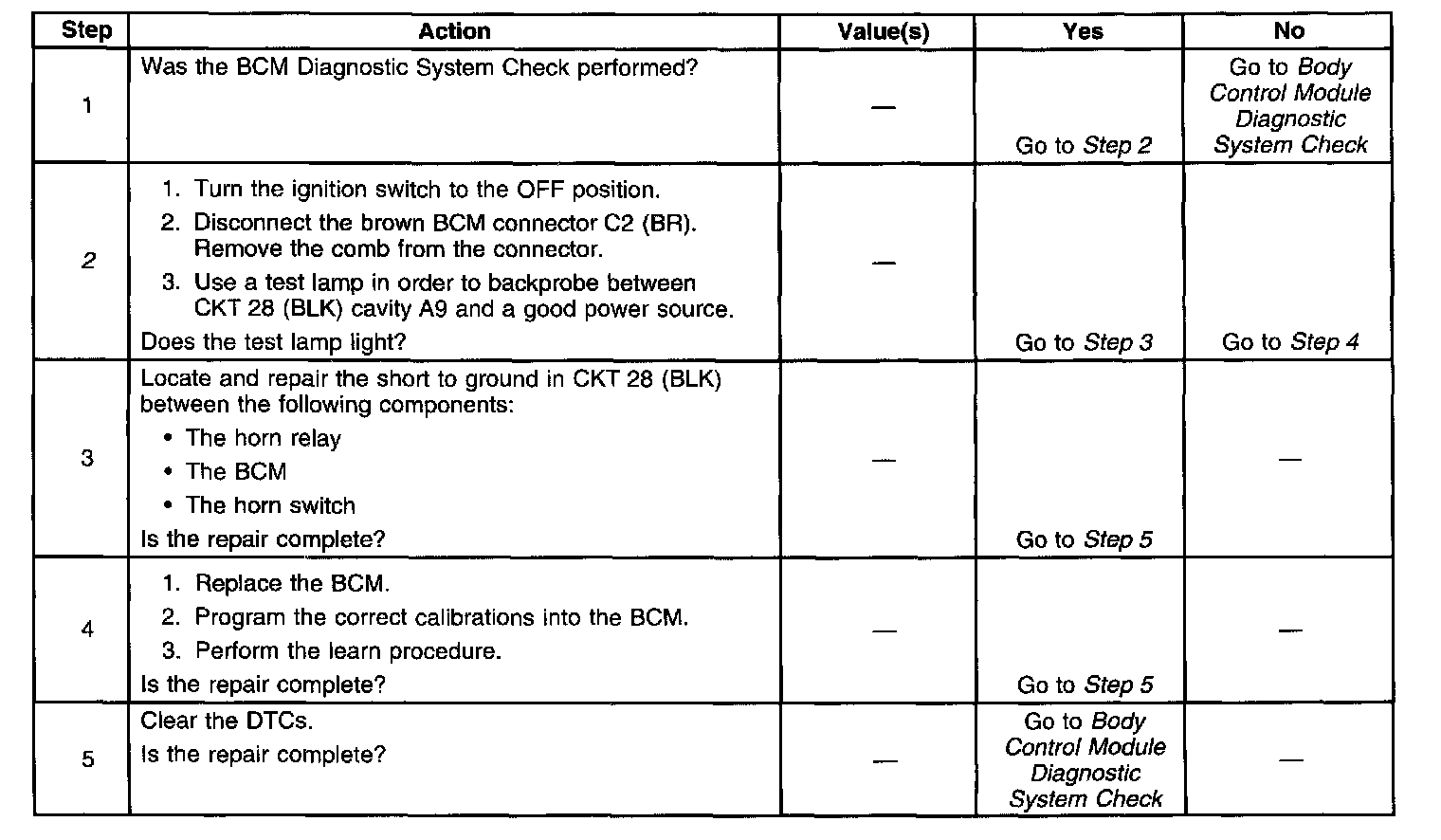

TEST DESCRIPTION
The number below refers to the step number on the diagnostic table.
2. This step tests CKT 28 for a short to ground.
