P0724

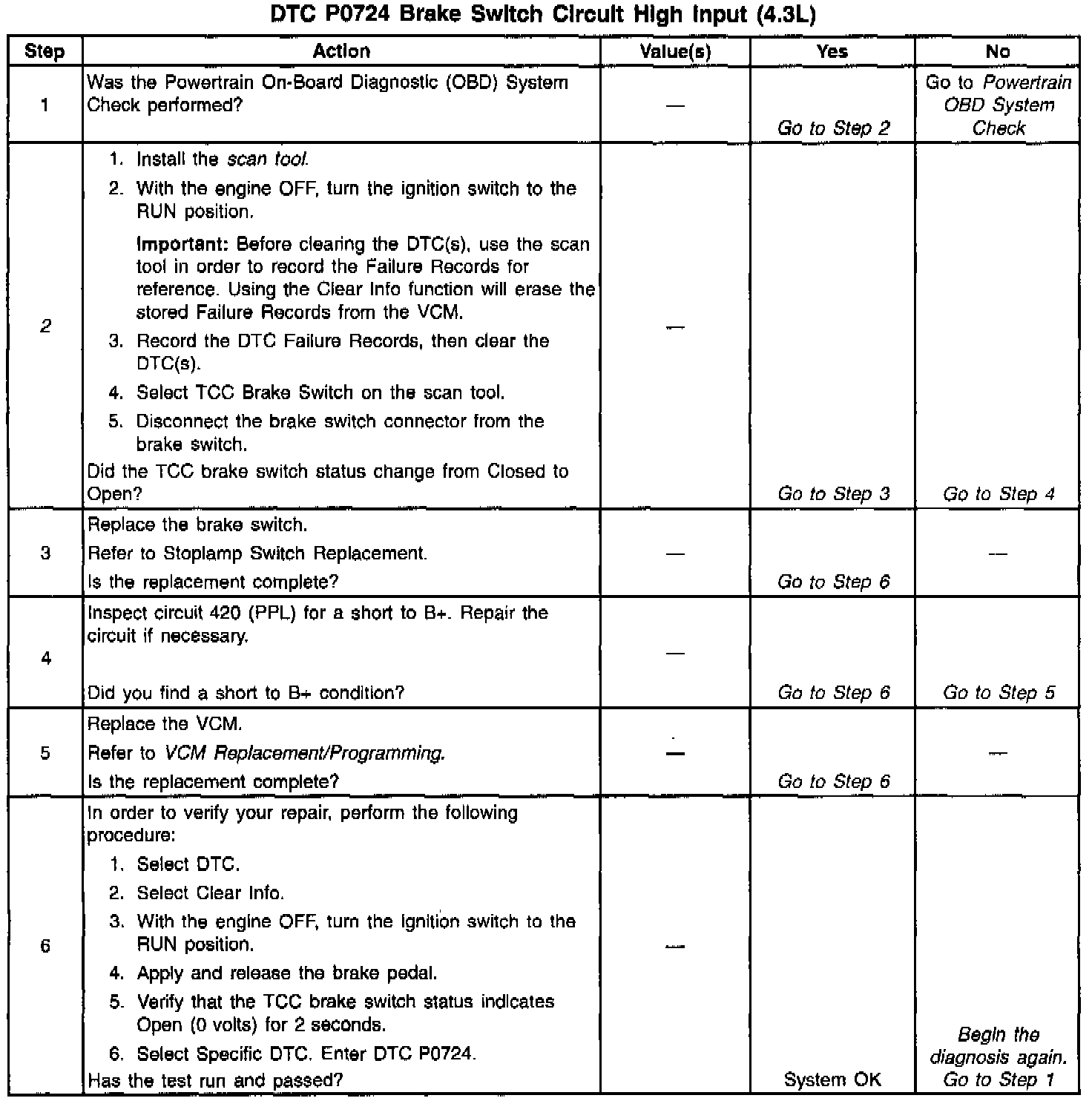

Diagnostic Chart:

Wiring Diagram:

CIRCUIT DESCRIPTION

The brake switch indicates brake pedal status to the Vehicle Control Module (VCM). The brake switch is a normally-closed switch that supplies battery voltage on circuit 420 to the VCM. Applying the brake pedal opens the switch, interrupting voltage to the VCM. When the brake pedal is released, the VCM receives a constant voltage signal. If the VCM receives a zero voltage signal at the brake switch input, and the Torque Converter Clutch (TCC) is engaged, the VCM de-energizes the Torque Converter Clutch Solenoid Valve (TCC Sol. Valve). The VCM disregards the brake switch input for TCC scheduling if there is a brake switch circuit fault.

When the VCM detects a closed brake switch circuit (12 volts, high input) during decelerations, then DTC P0724 sets. DTC P0724 is a type D DTC.

CONDITIONS FOR SETTING THE DTC

^ No Vehicle Speed Sensor (VSS) Assy. DTCs P0502 or P0503.

^ The VCM detects a closed brake switch circuit (12 volts) without changing for 2 seconds and the following events occur seven consecutive times:

- The vehicle speed is greater than 32 km/h (20 mph) for 6 seconds;

- then the vehicle speed is between 8-32 km/h (5-20 mph) for 4 seconds;

- then the vehicle speed is less than 8 km/h (5 mph).


ACTION TAKEN WHEN THE DTC SETS

^ The VCM does not illuminate the Malfunction Indicator Lamp (MIL).

^ DTC P0724 stores in VCM history.


CONDITIONS FOR CLEARING THE DTC

^ A scan tool can clear the DTC from the VCM history. The VCM clears the DTC from the VCM history if the vehicle completes 40 warm-up cycles without a failure reported.

^ The VCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the VCM.


DIAGNOSTIC AIDS

^ Inspect the wiring at the VCM, the brake switch connector and all other circuit connecting points for the following conditions:

- A bent terminal.

- A backed out terminal.

- A damaged terminal.

- Poor terminal tension.

- A chafed wire.

- A broken wire inside the insulation.

- Moisture intrusion.

- Corrosion.

^ When diagnosing for an intermittent short or open condition, massage the wiring harness while watching the test equipment for a change.

^ Ask about the customer's driving habits. Ask about unusual driving conditions (e.g. stop and go, expressway, etc.).

^ Inspect the brake switch for proper mounting and adjustment.


TEST DESCRIPTION

The numbers below refer to the step numbers on the diagnostic table.

2. This step isolates the brake switch as a source for setting the DTC.
