Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1998
>>
S10/T10 P/U 4WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Specifications
>>

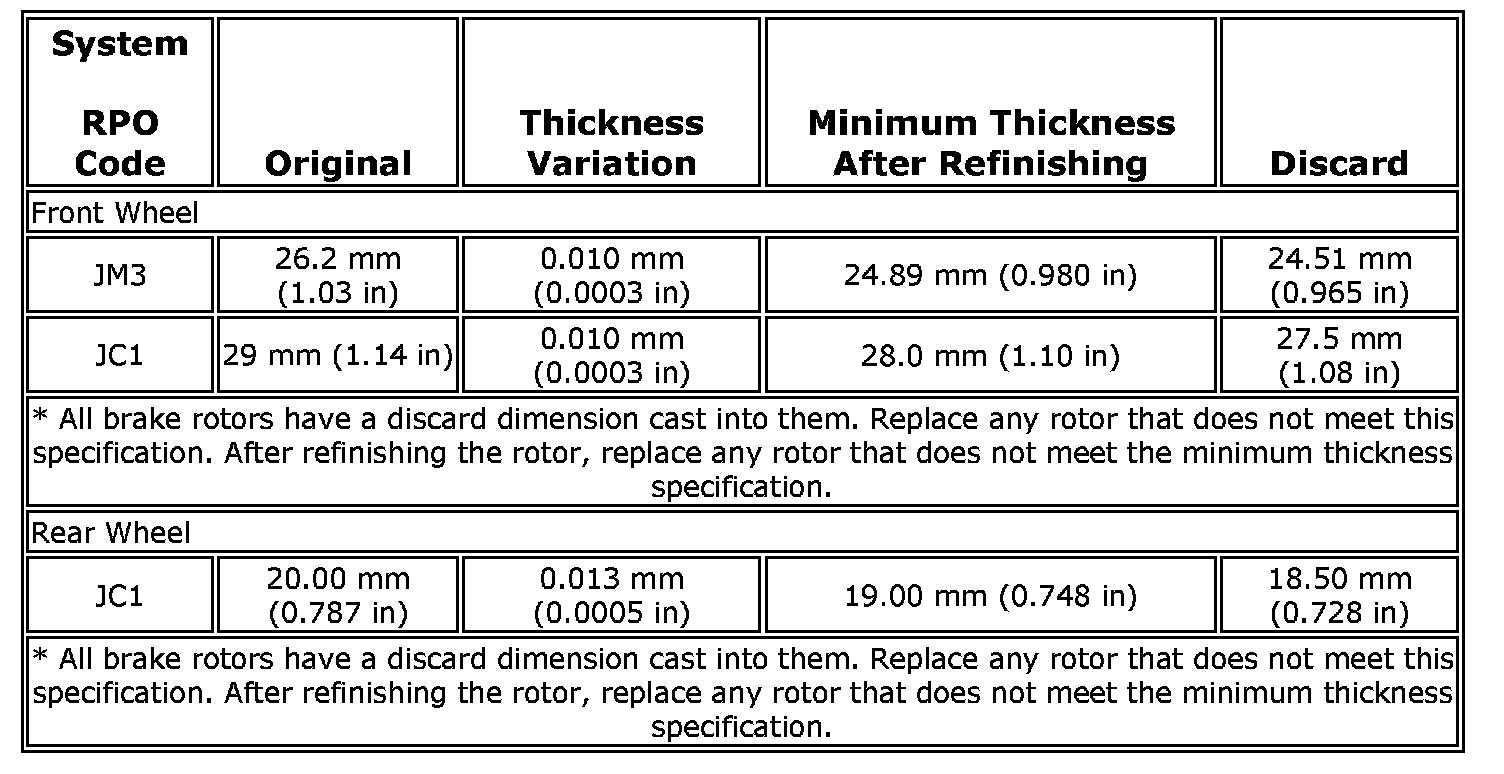

Brake Rotor
Brake Rotor
RPO Code
JC1
Brake: Vac. Power, 4 Whl Disc, 5500 Lbs
JM3
Brake Booster: 260 MM, Tandem High Flow
