Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1998
>>
Tracker 2WD L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
Power Door Lock Switch

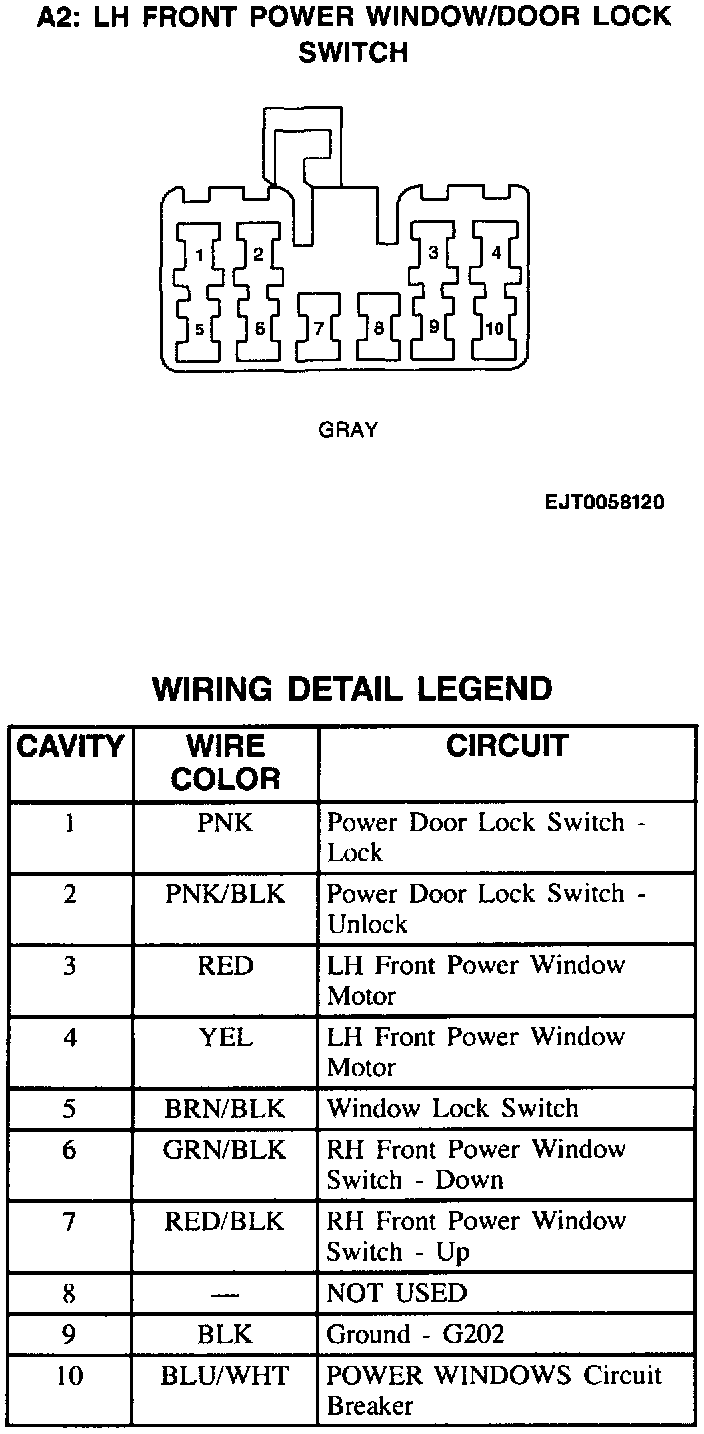

A2: LH Front Power Window/Door Lock Switch:
