Air Bag Systems

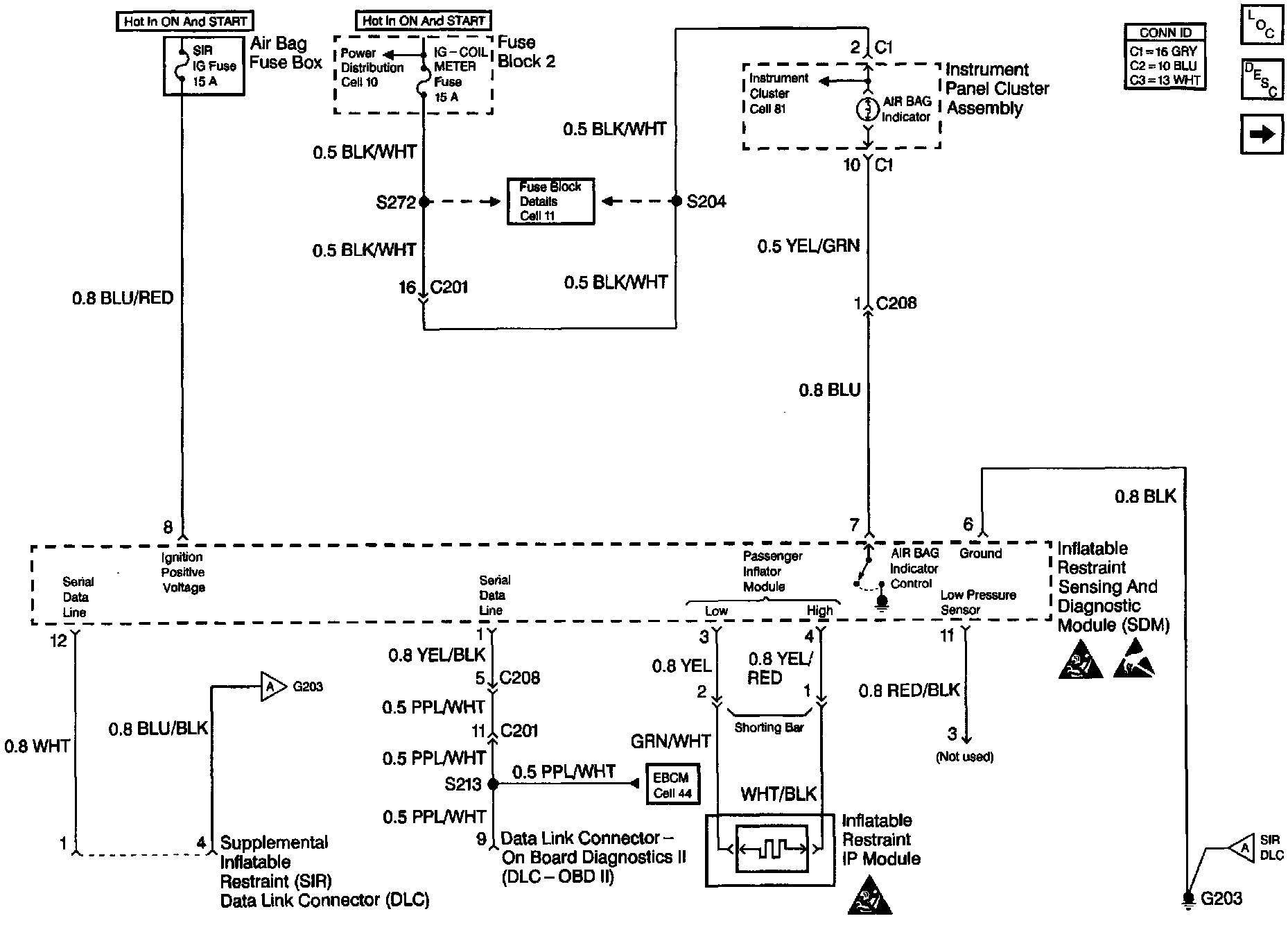

Inflatable Restraint Module And Inflatable Restraint Sensing And Diagnostic Module:



Inflatable Restraint Steering Wheel Module And Combination Switch:
