Daytime Running Lamp: Service and Repair

REMOVAL PROCEDURE

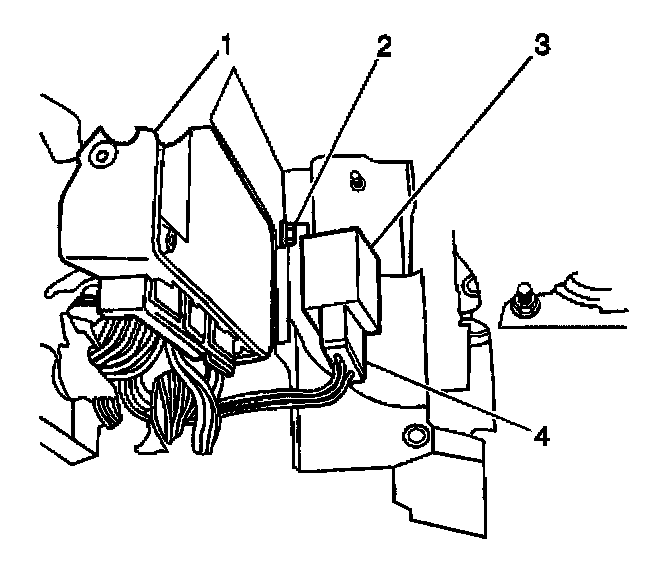

1. Disconnect the DRL module electrical connector (4).
2. Remove the DRL module mounting nut (2).
3. Remove the DRL module (3) from the vehicle.

INSTALLATION PROCEDURE
1. Install the DRL module (3) to the vehicle. Secure the module (3) with the mounting nut (2).
2. Connect the DRL module electrical connector (4).
