Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>

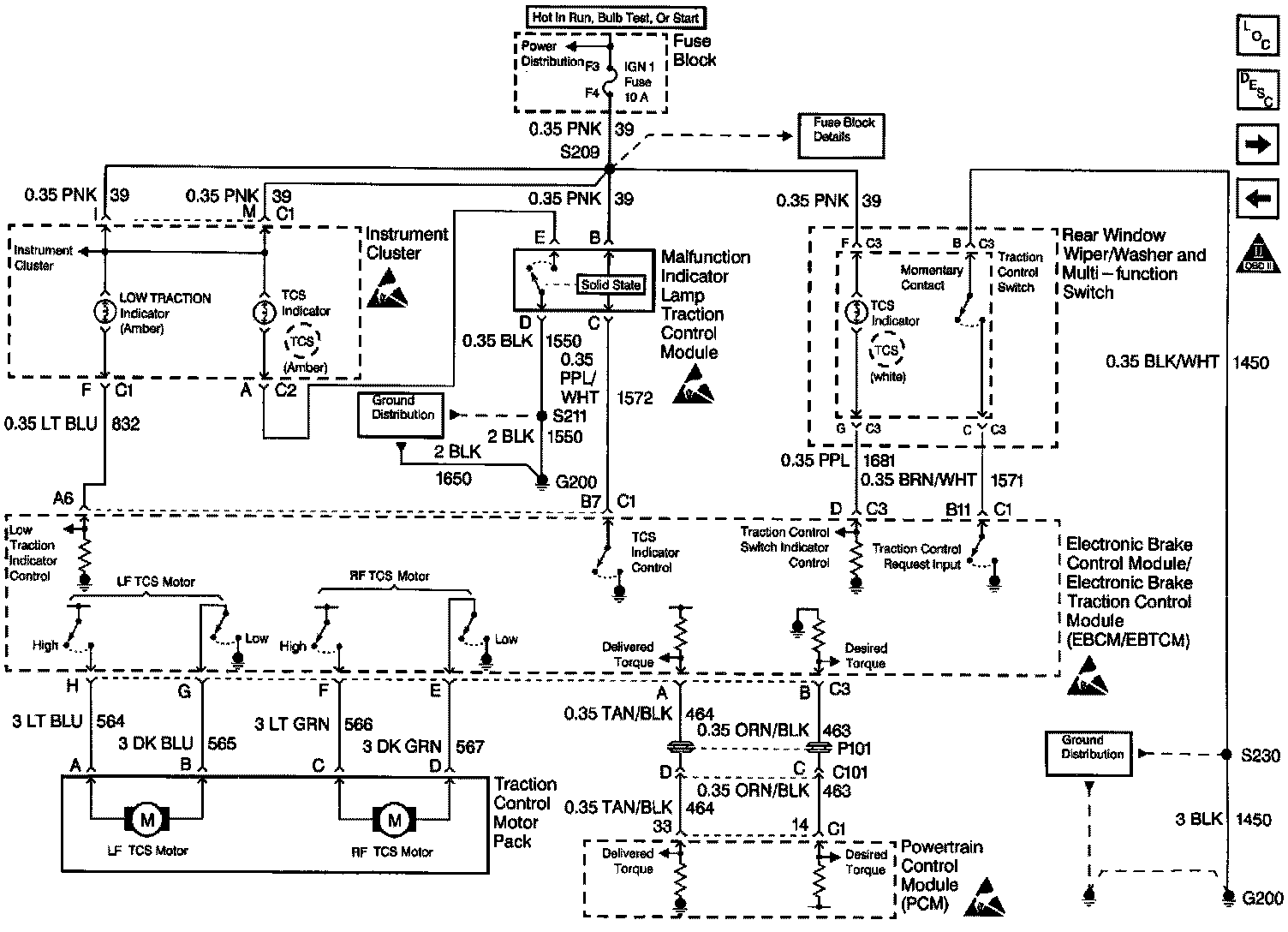

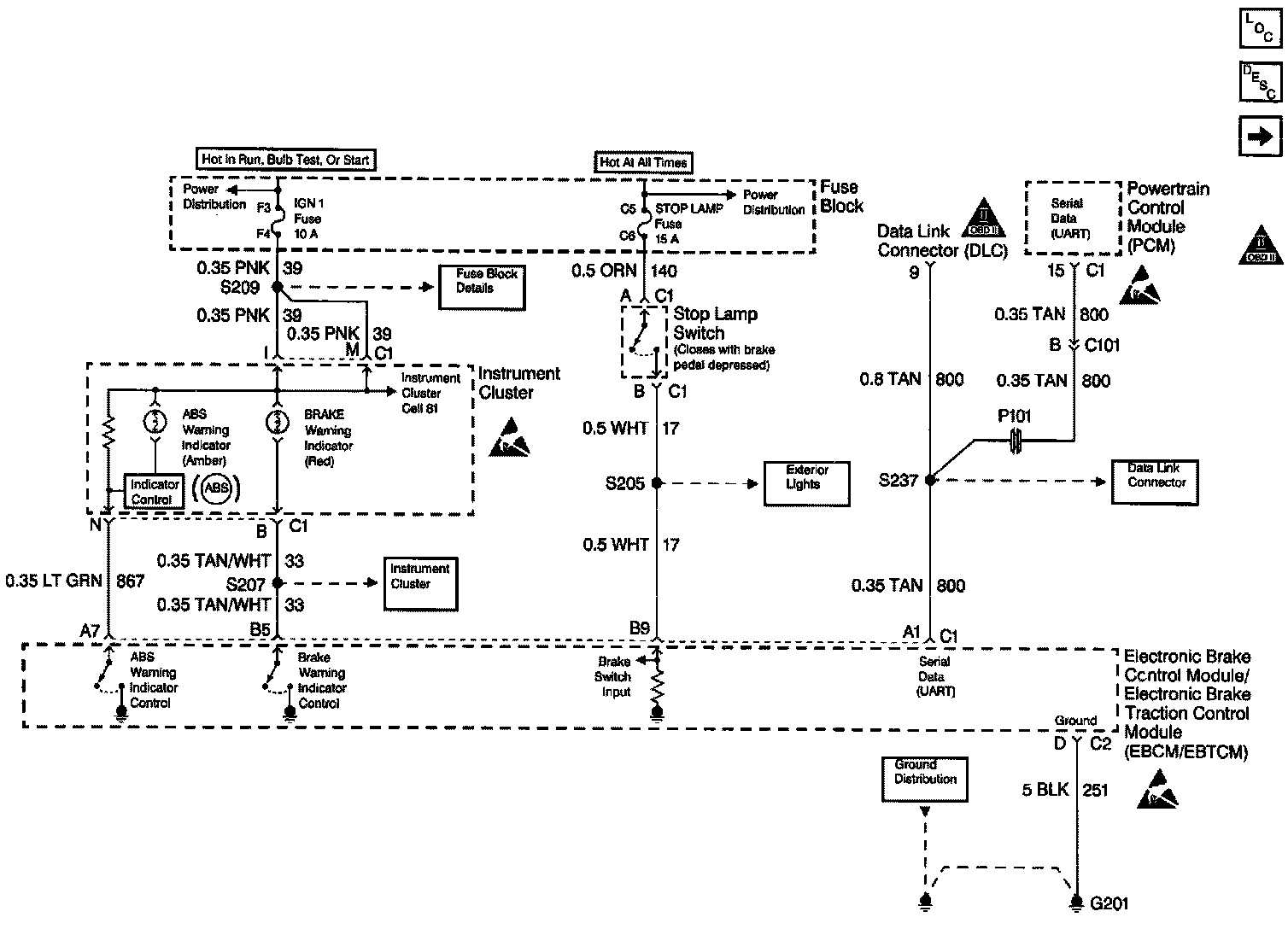

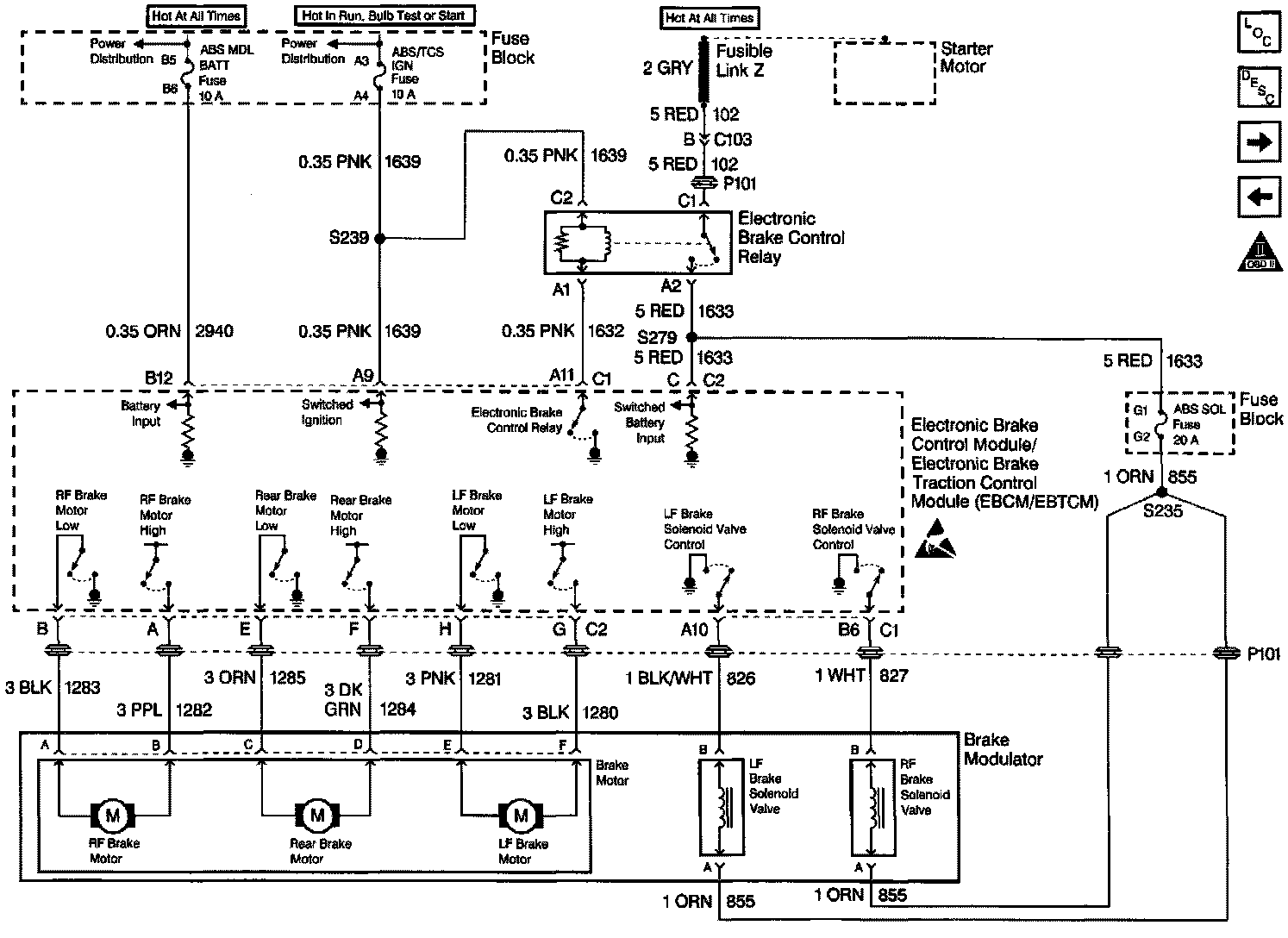

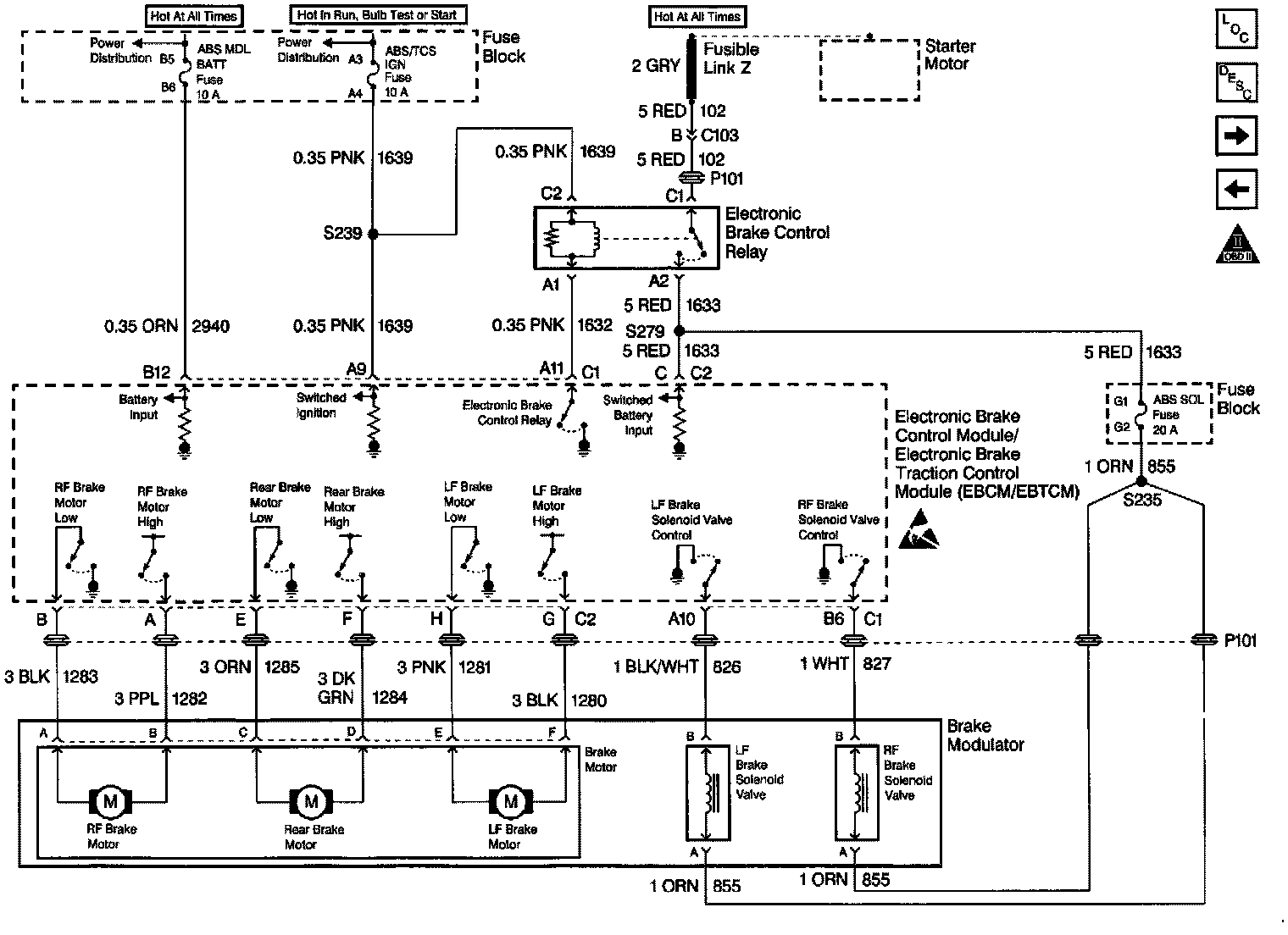

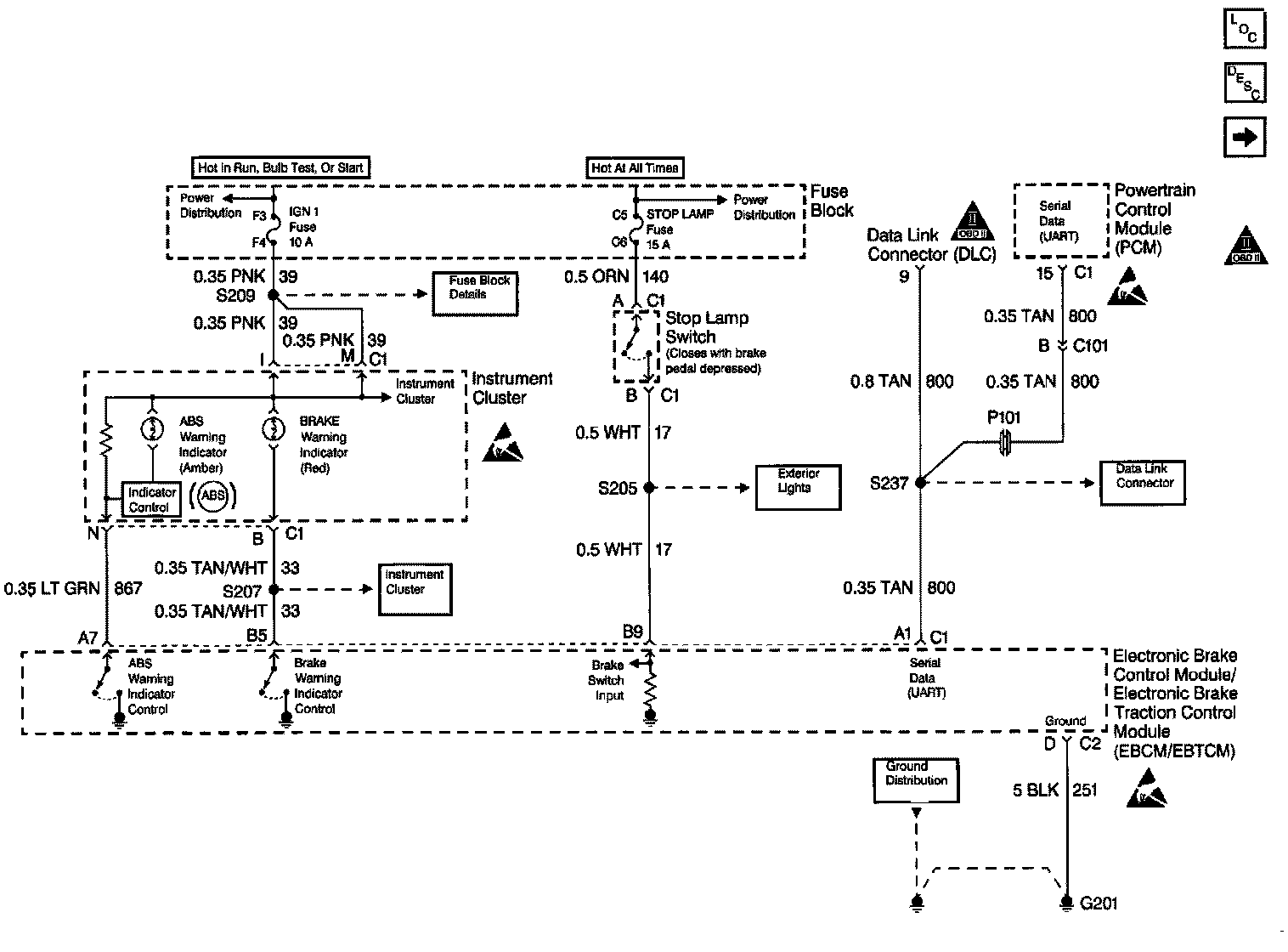

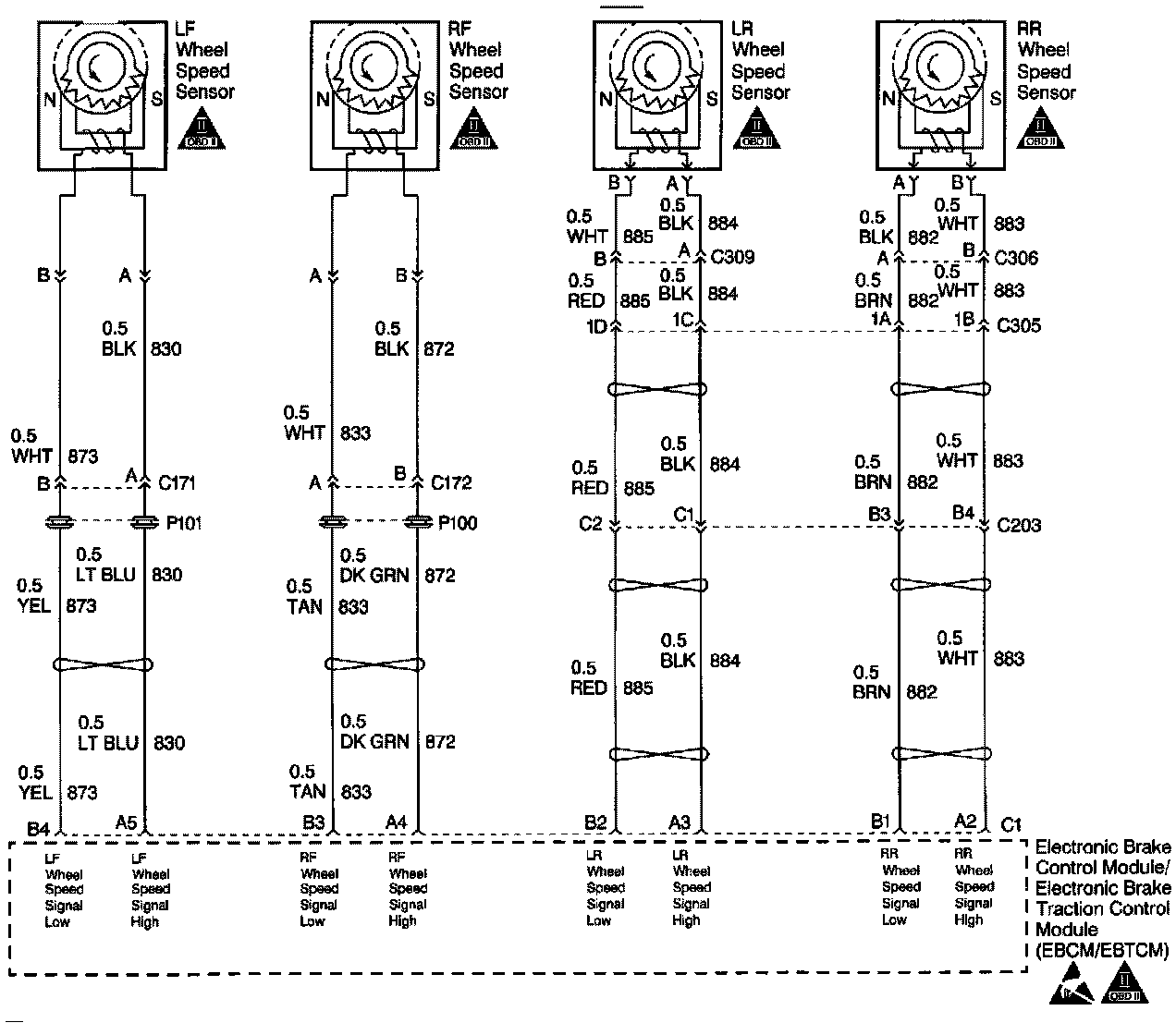

Electrical Diagrams
Electrical Diagrams
Page 1 Of 3:
Page 2 Of 3:
Page 3 Of 3:
Page 1 Of 4:
Page 2 Of 4:
Page 3 Of 4:
Page 4 Of 4:
