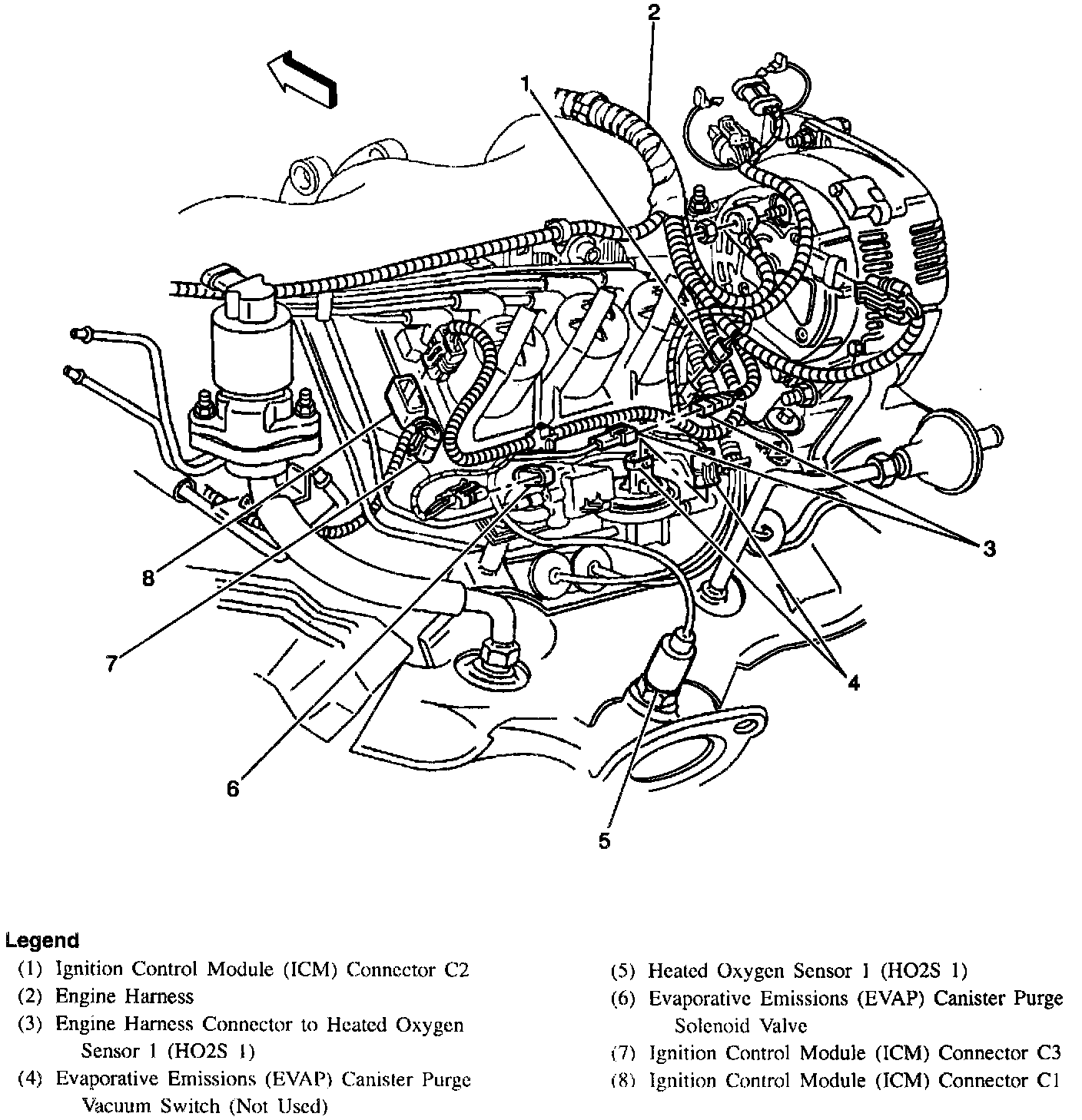

Engine Harness Connector to Heated Oxygen Sensor (HO2S 1)
Engine Harness Connector to Heated Oxygen Sensor (HO2S 1)
Rear Side Of Engine Compartment:
