Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Connectors By Component
>>

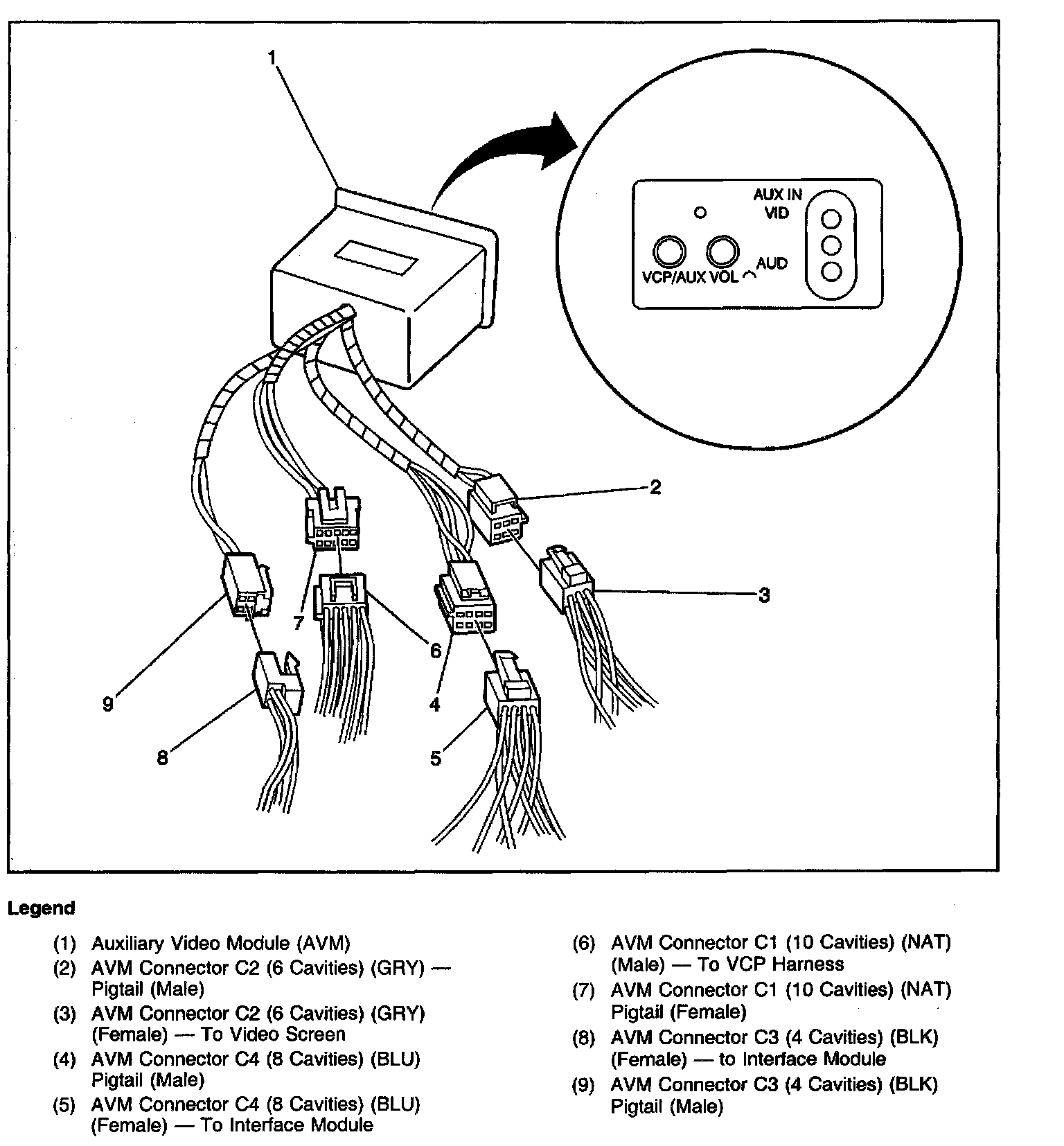

AVM CONN C4 (8 Cavities) (BLU) (Female) - To Interface Module
AVM CONN C4 (8 Cavities) (BLU) (Female) - To Interface Module
Auxiliary Video Module: AVM:
