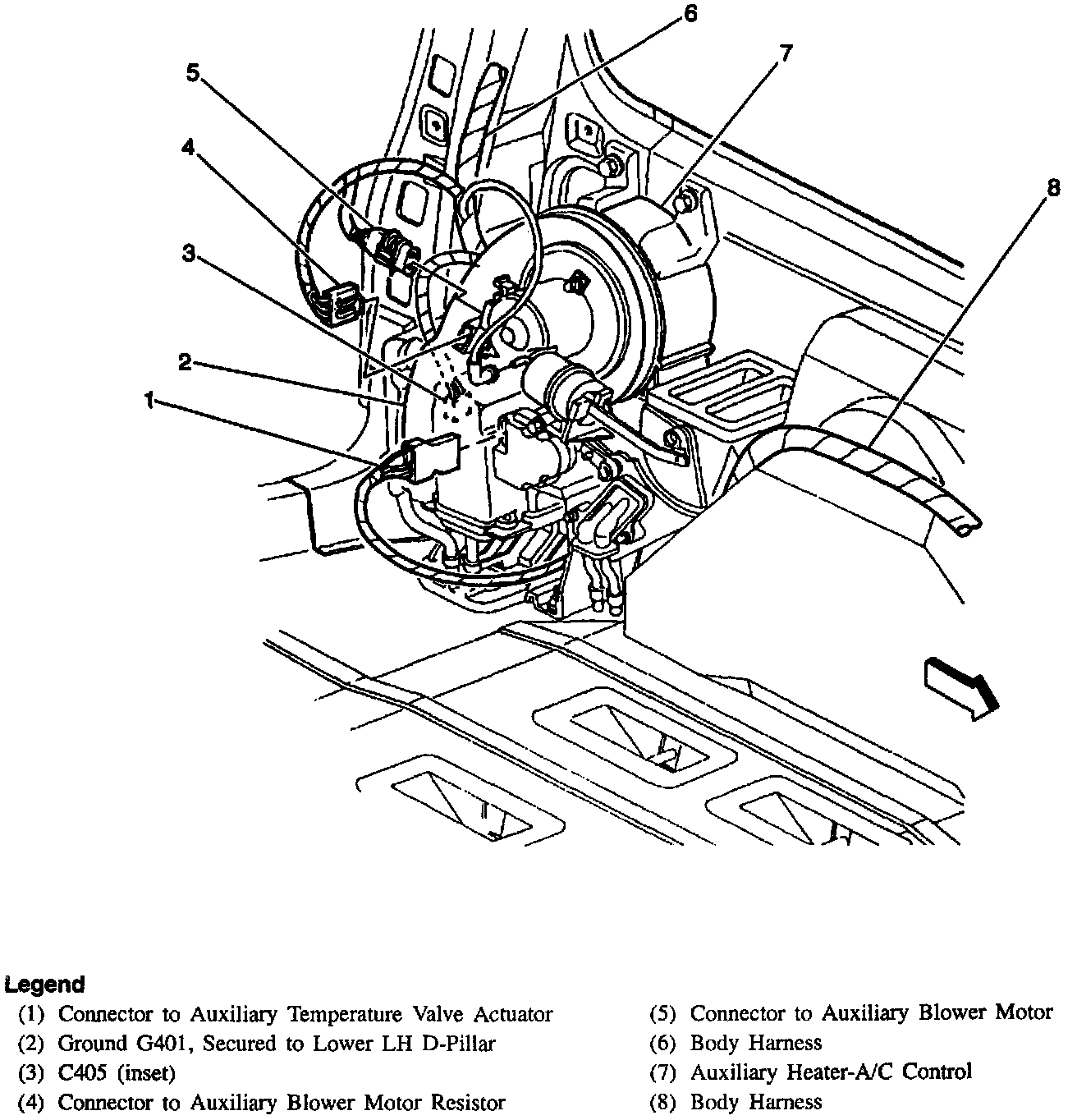

Connector to Auxiliary Temperature Valve Actuator
Connector to Auxiliary Temperature Valve Actuator
Behind Rear Left Wheelhouse:
