Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Connectors By Component
>>
Connector to Engine Oil Level Indicator Switch

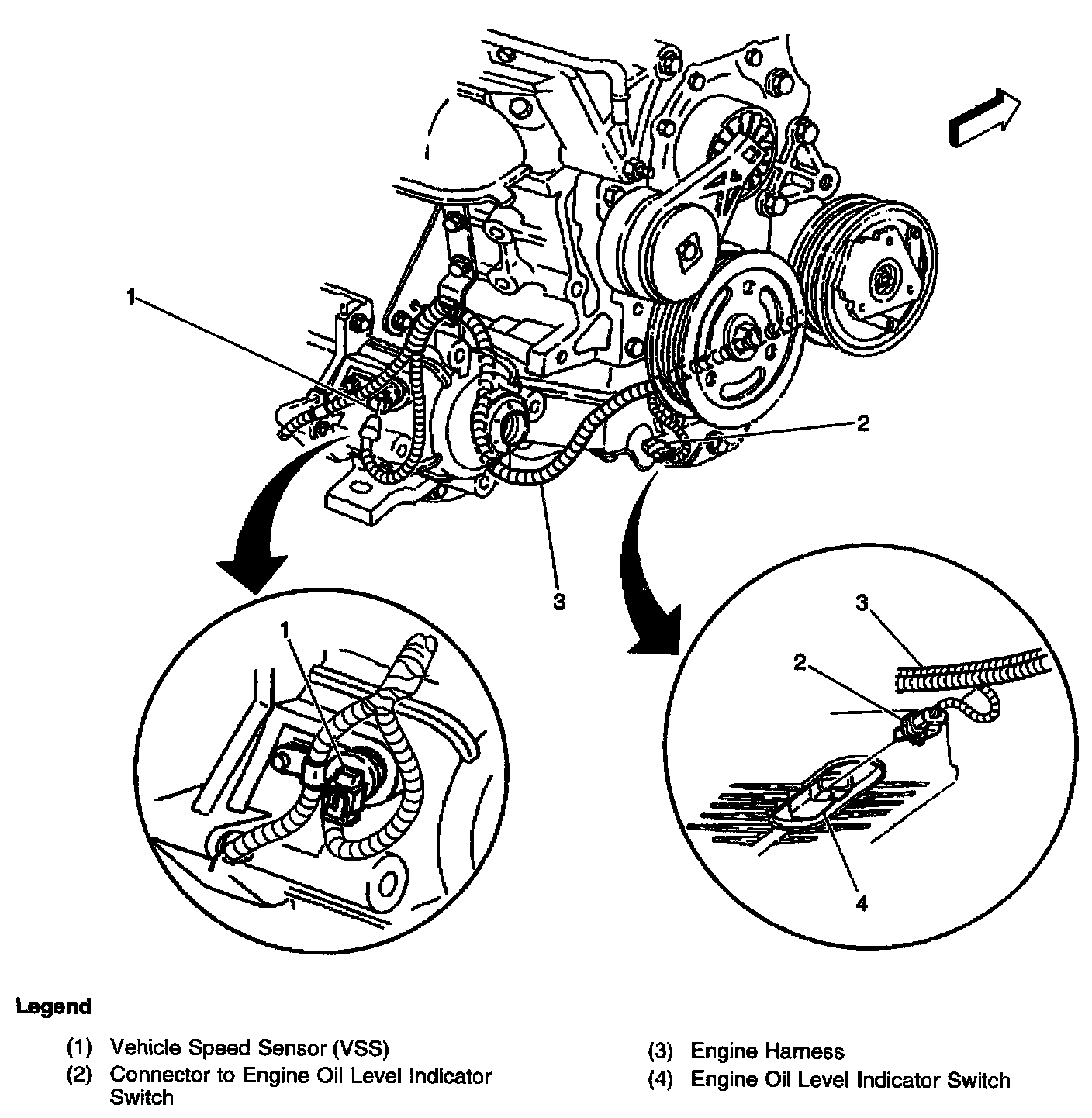

Connector to Engine Oil Level Indicator Switch
Locations View:
