Instrument Panel, Gauges and Warning Indicators
>>
Temperature Sensor (Gauge)
Temperature Sensor (Gauge)

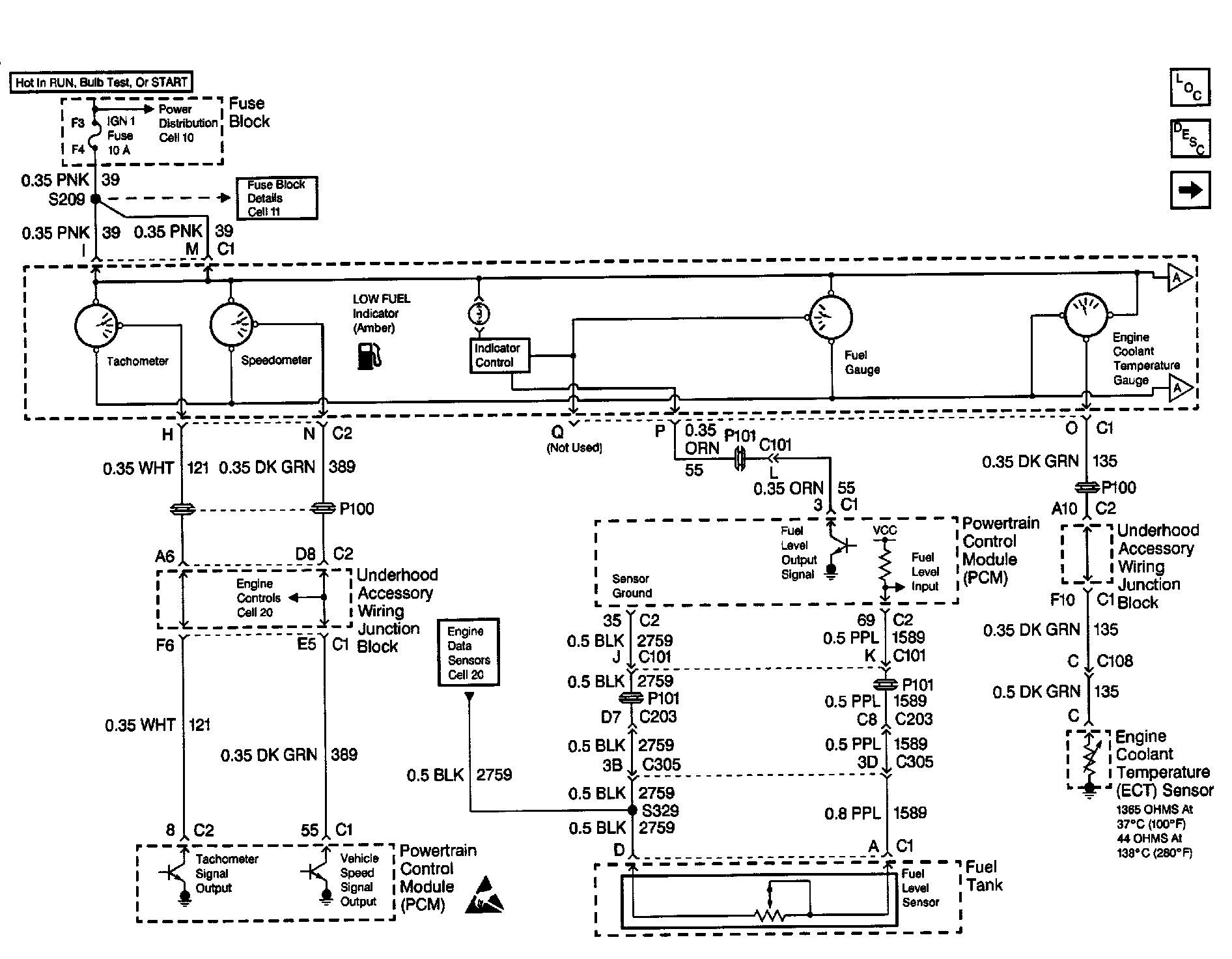

Instrument Cluster Analog Schematics: Fuel Gauge, Engine Coolant Temperature Gauge:
