Rotating the Engine For Service Access

^ TOOLS REQUIRED
- J41131 Engine Tilt Strap

1. Remove the throttle body air inlet duct.
2. Set the park brake.
3. Shift the transaxle into Neutral.
4. Remove the engine mount strut bolts. Swing the engine mount struts aside.

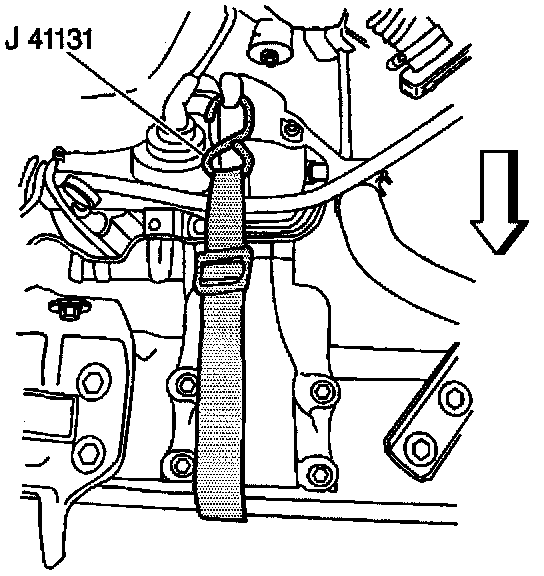

5. Install the J41131.
6. Rotate the engine forward for component access.
7. Tighten the J41131.
