Compressor Clutch Relay: Service and Repair

Removal Procedure

1. Remove the electrical center cover located on the inside right fender panel.

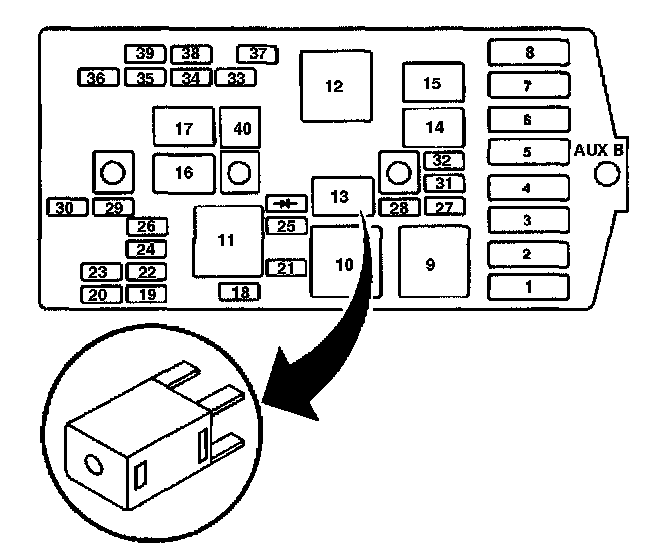

2. Remove the A/C compressor control relay from the electrical center.

Installation Procedure

1. Install the A/C compressor control relay to the electrical center.
2. Install the electrical center cover.
