Home
>>
Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>

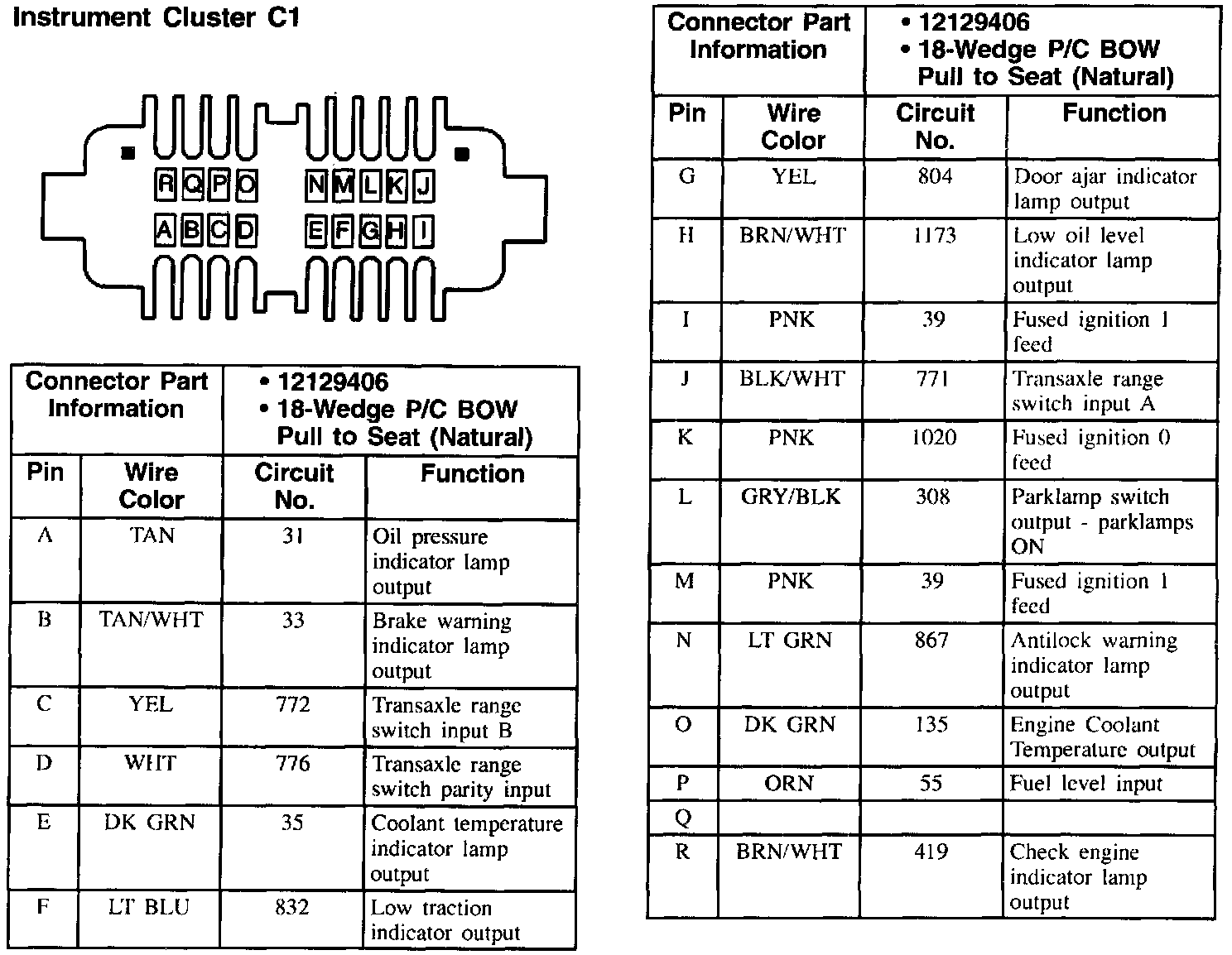

Instrument Cluster C1
Instrument Cluster C1

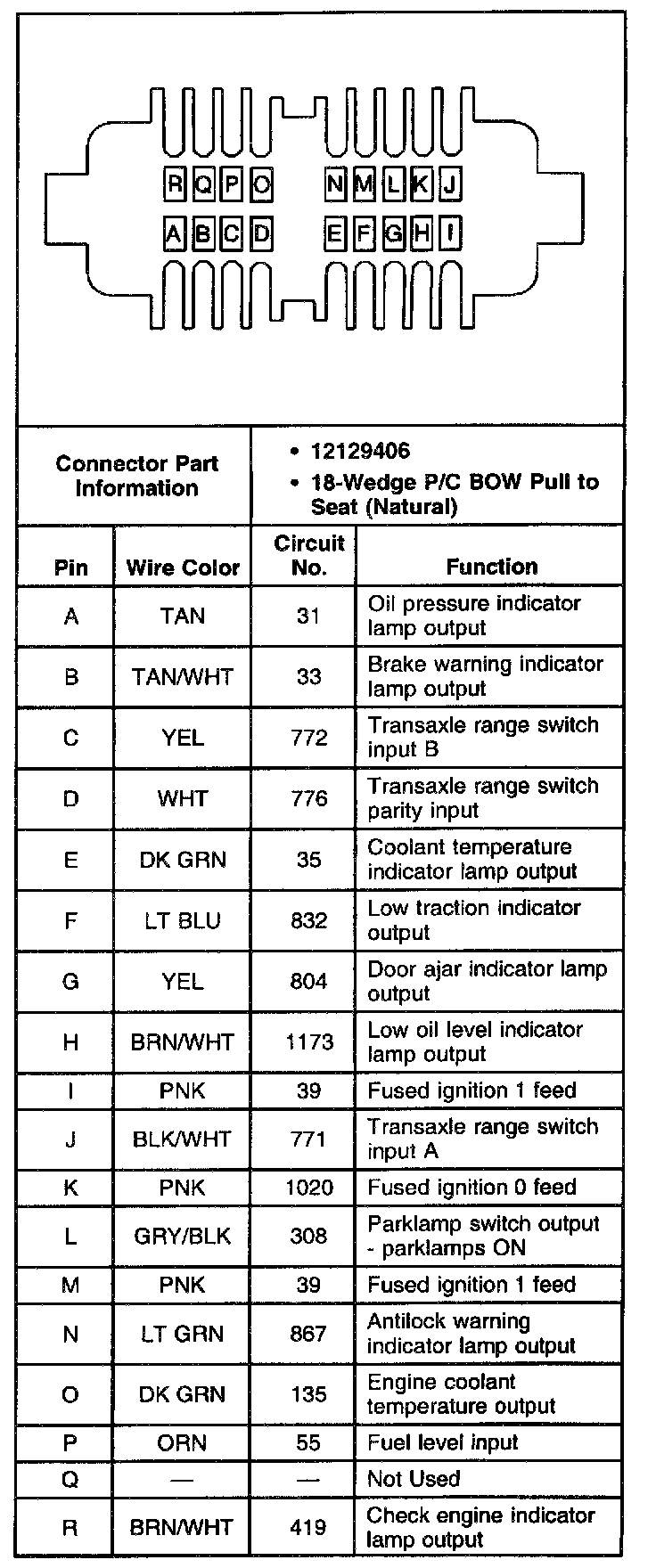

Instrument Cluster C1:
Instrument Cluster C1:
