Map Light: Diagrams

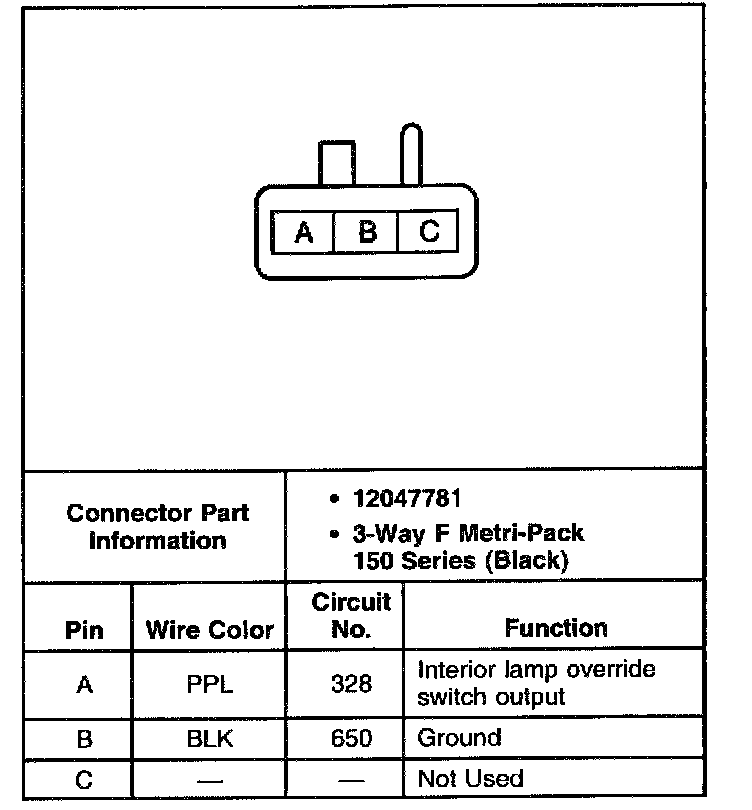

Windshield Header Courtesy/Reading Lamps:

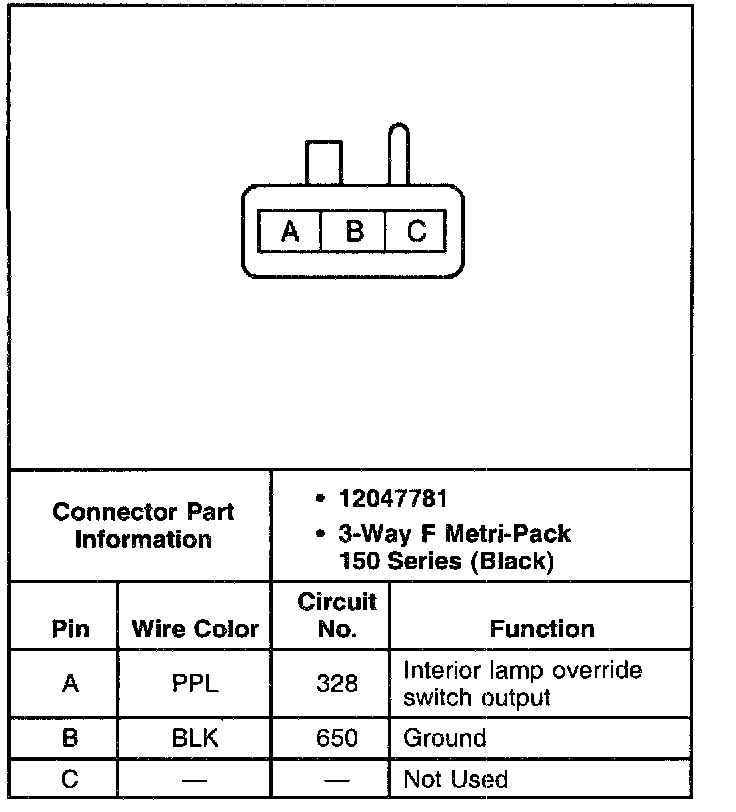

Right Rear Roof Rail Reading Lamp:
Right Roof Rail Reading Lamp:
Left Roof Rail Reading Lamp:
