Fuse Block: Service and Repair

REMOVAL PROCEDURE




1. Disconnect the battery negative cable.
2. Remove the fuse block IP end caps.

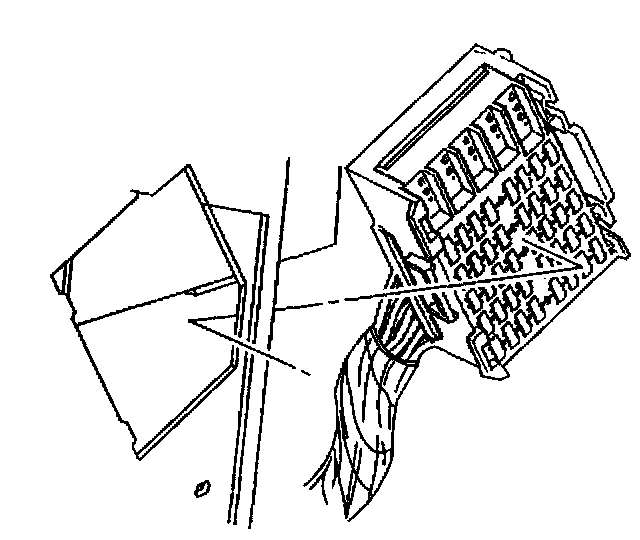

3. Release the front retainer on the fuse block.




4. Push the fuse block into the instrument panel.
5. Remove the fuse block from the instrument panel.
6. Remove the electrical connectors from the fuse block.

INSTALLATION PROCEDURE




1. Install the electrical connectors into the fuse block.
2. Align the rear side of the fuse block with the instrument panel.
3. Push the fuse block into the opening until secure.
4. Install the IP end caps.
5. Connect the battery negative cable.
