Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

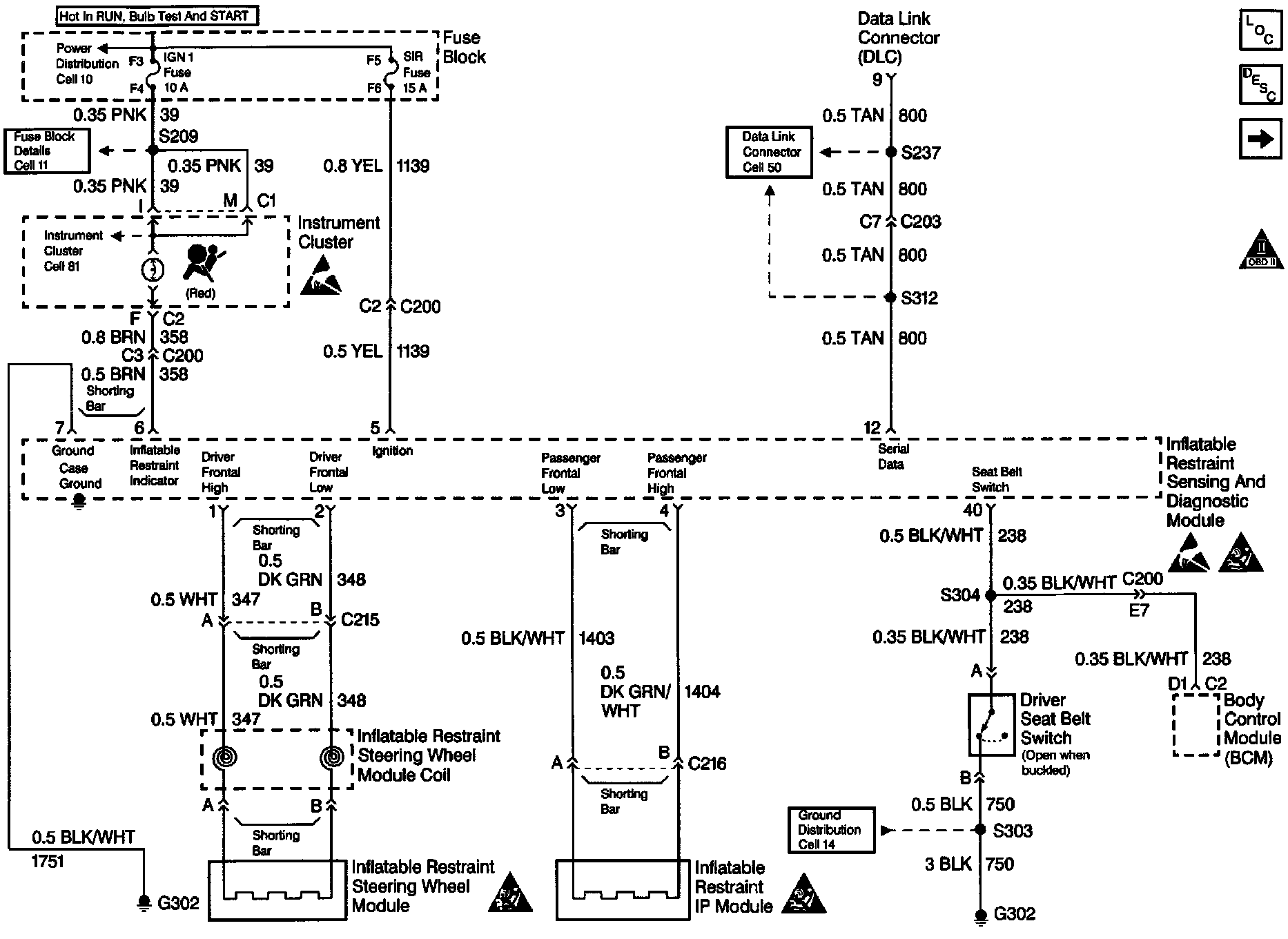

Wiring Diagram:

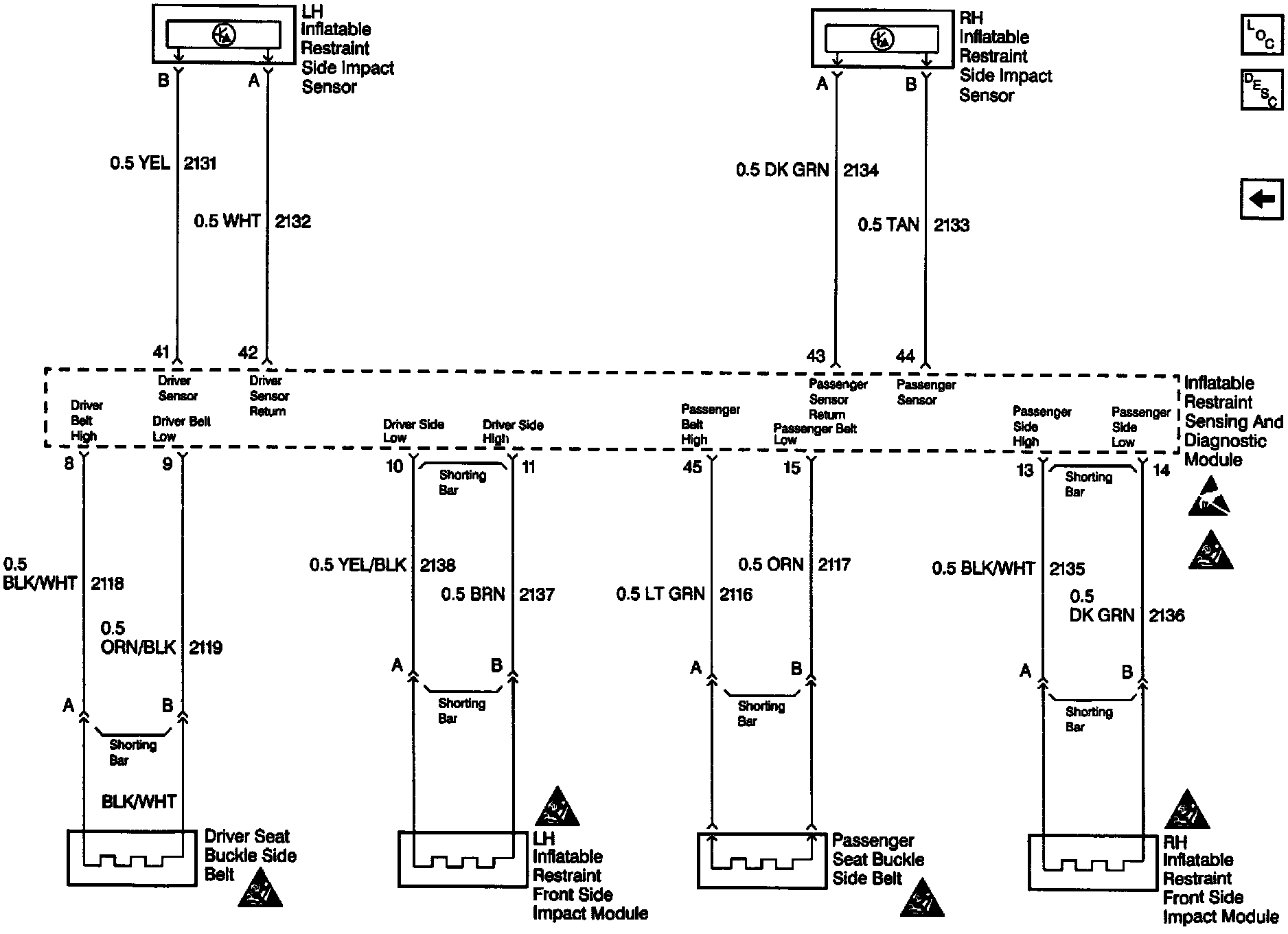

Wiring Diagram:
