Control Valve Body Assembly
Control Valve Body Assembly

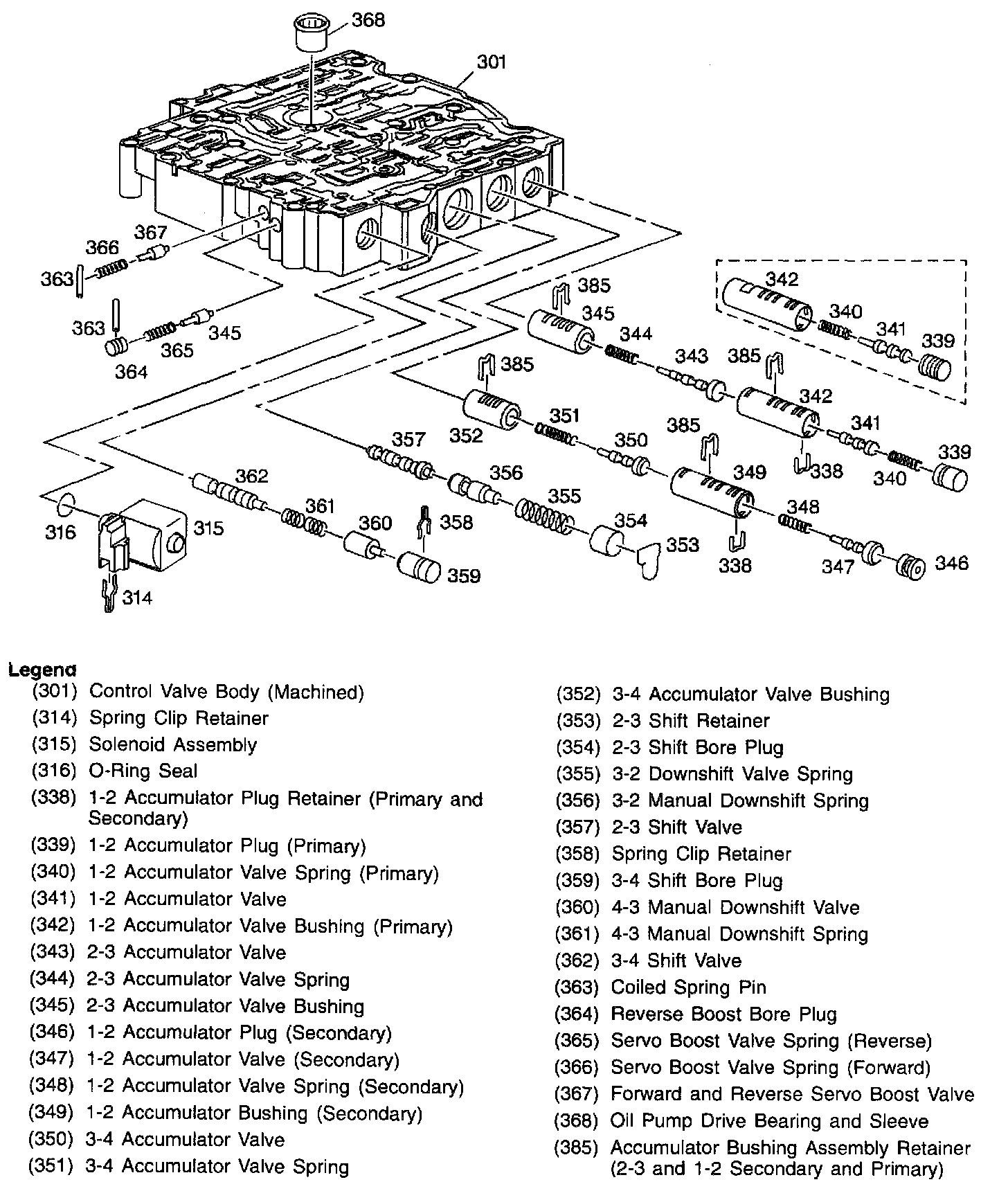

CONTROL VALVE BODY ASSEMBLY (1 OF 2)
CONTROL VALVE BODY ASSEMBLY (2 OF 2)
