Engine Oil Level SW, Engine Coolant Level SW, Underhood Lamp
Engine Oil Level SW, Engine Coolant Level SW, Underhood Lamp

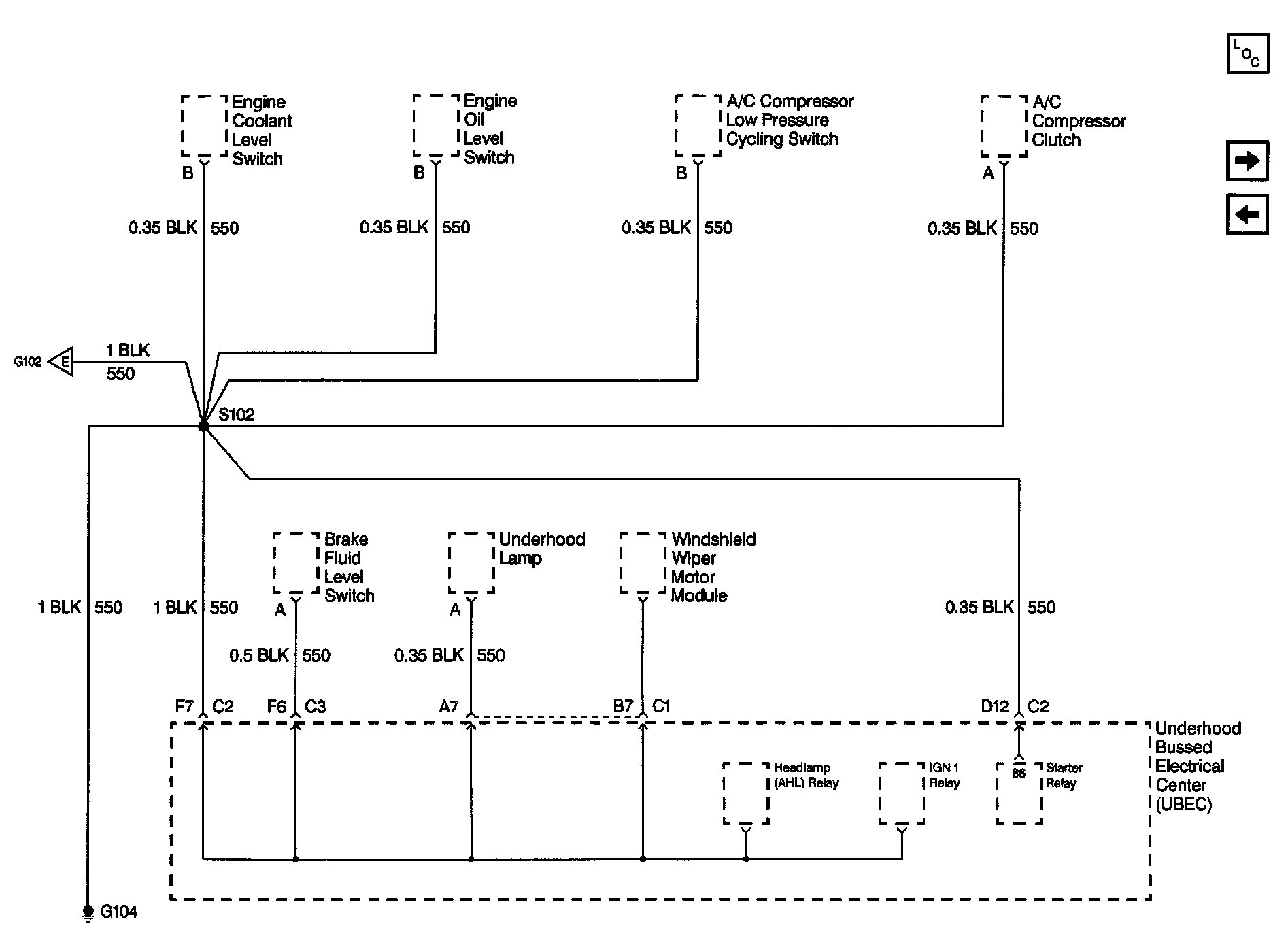

Engine Oil Level Switch, Engine Coolant Level Switch, Underhood Lamp:
