Steering Gear Valve Replacement

DISASSEMBLY PROCEDURE

1. Remove the thrust support assembly.
2. Remove the stub shaft (1).
3. Remove the valve assembly (2).
4. Remove the stub shaft (1) from the valve assembly (2).
5. Tap the stub shaft (1) lightly on a wood block in order to loosen the shaft cap.
6. Pull the shaft cap and the valve spool out from valve body (2) 6 mm (1/4 inch).
7. Disengage the stub shaft pin (3) from the hole in the valve spool (4).

8. If the valve assembly needs repair, disassemble the valve as follows:

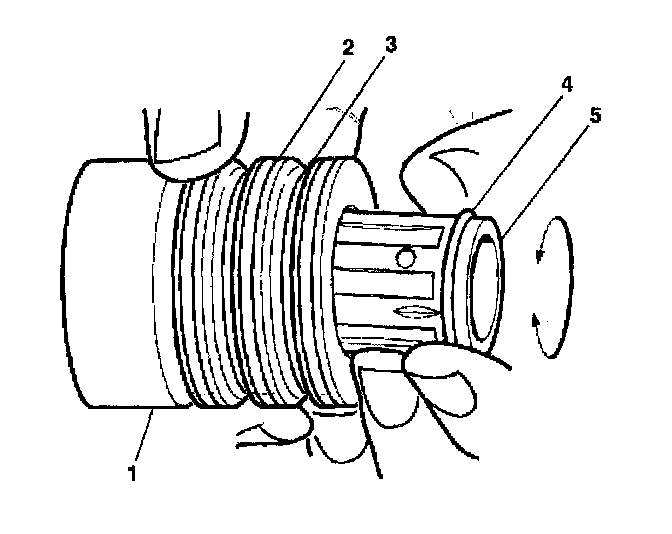

8.1. Simultaneously pull and rotate the valve spool (5) in order to remove the valve spool (5) from the valve body (1).
8.2. Remove the valve spool O-ring seal (4).
8.3. Alternately remove the valve body teflon rings (2) and the O-ring seals (3).

ASSEMBLY PROCEDURE

1. If the valve assembly has been disassembled, reassemble the valve as follows:
1.1. Install the valve spool O-ring seal (4) to the valve spool (5).
1.2. Lubricate the valve spool (5) and O-ring seal (4) with power steering fluid.
1.3. Simultaneously push and rotate the valve spool (5) into the valve body (1) until the hole in the valve spool for the stub shaft pin is accessible from the opposite end of the valve body (1).

2. Install the stub shaft to the valve spool as follows:
2.1. Insert the stub shaft (3) into the valve spool.
2.2. Insert the pin. The notch in the stub shaft cap (1) must fully engage the valve body pin (2).
2.3. Seat the stub shaft cap against the valve body shoulder.
2.4. Alternately install the O-ring seals and the teflon rings to the valve body.
2.5. Lubricate the O-ring seals and the teflon rings with power steering fluid.

3. Install the stub shaft (7) and valve assembly (6) to the worm shaft (5). Ensure the pin fits in the worm shaft to the slot in the valve assembly.
4. To adjust the thrust support assembly; refer to Steering Gear Thrust Support Replacement -Off Vehicle.
5. To adjust the pitman shaft over-center sector; refer to Pitman Shaft Over-Center Preload Adjustment - Off Vehicle.
