Cruise Control Module: Service and Repair

REMOVAL PROCEDURE

Caution: Refer to Battery Disconnect Caution in Cautions and Notices.




1. Disconnect the negative battery cable.

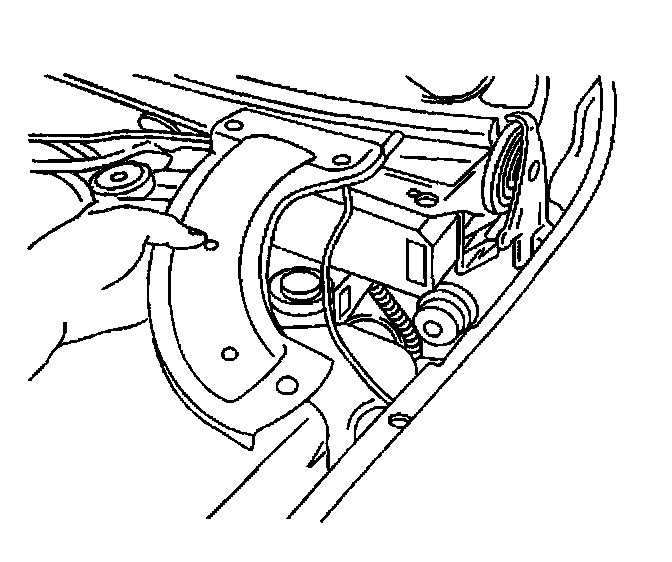

2. Remove the upper fender brace assembly.

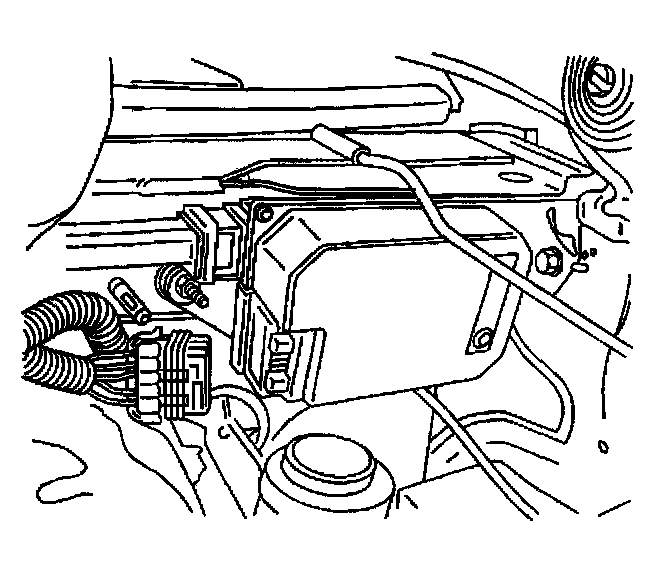

3. Disconnect the electrical connector at the cruise control module.

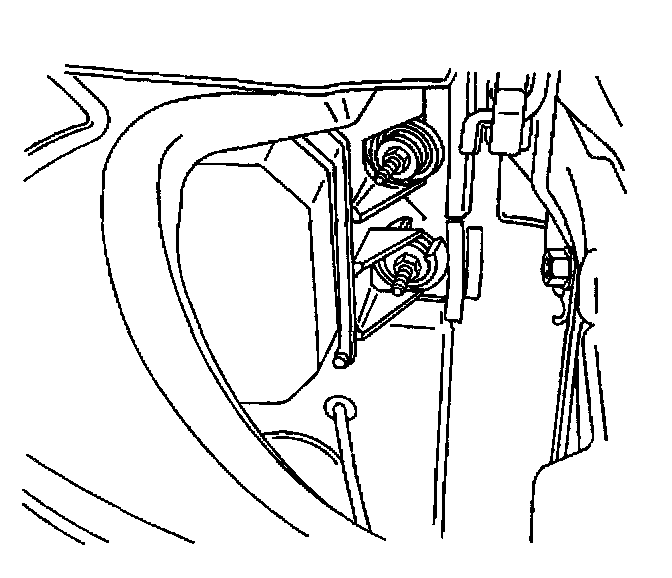

4. Remove the nuts retaining the cruise control module to the cowl.




5. Disconnect the cruise control cable from the module.
6. Remove the cruise control module from the vehicle.

INSTALLATION PROCEDURE



1. Install the cruise control module to the vehicle.
2. Connect the cruise control cable to the cruise control module. Refer to Cruise Control Cable Replacement. Cruise Control Cable Replacement

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the nuts in order to retain the cruise control module to the cowl.

Tighten
Tighten the nuts to 9 N.m (80 lb in).




4. Connect the electrical connector at the cruise control module.




5. Install the brace.

Tighten
Tighten the bolts to 9 N.m (80 lb in).

6. Connect the negative battery cable.
