A/C Compressor High Pressure Cutoff Switch
A/C Compressor High Pressure Cutoff Switch
A/C Compressor High Pressure Cutoff Switch (Gas):

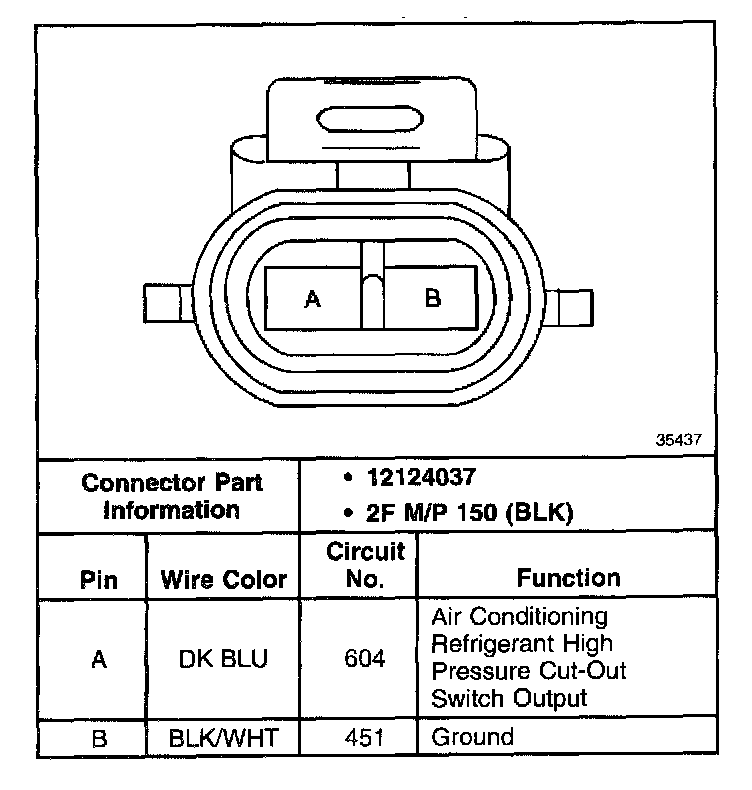

A/C Compressor Low Pressure Cutout Switch (Gas):
