Fog Lamp Replacement - Front (Limited-Z-71 Tahoe)

REMOVAL PROCEDURE



1. Disconnect the electrical connector from the fog lamp.




2. Remove the bolt from the bumper securing the fog lamp assembly housing.

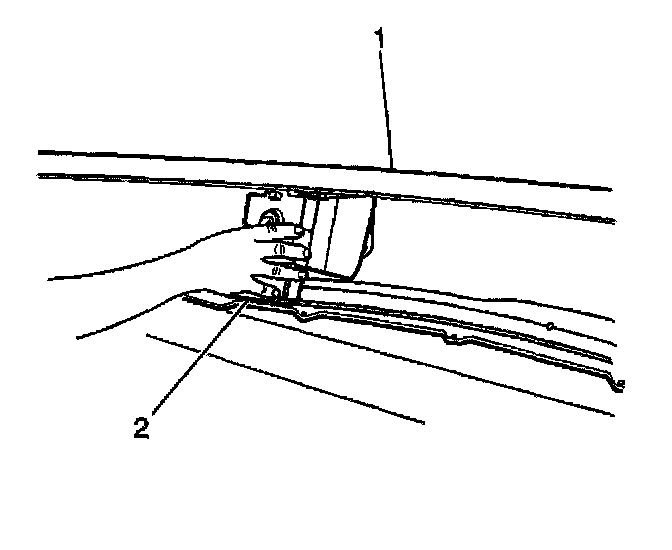

3. Rotate the fog lamp housing assembly (2) from under the bumper lip (1).
4. Remove the fog lamp assembly from the bumper.
5. Remove the foam backed tape from inside the bumper where the fog lamp mounts.

INSTALLATION PROCEDURE



1. Install the foam backed tape around the inside of the bumper where the fog lamp mounts for vibration control.
2. Install the fog lamp assembly housing (2) by sliding top of assembly under the inside upper bumper lip (1).




3. Rotate the bottom of the housing assembly into the bumper for a tight fit.

NOTE: Refer to Fastener Notice in Cautions and Notices.




4. Tighten the fog lamp housing assembly bracket bolt.

Tighten
Tighten the fog lamp housing assembly bracket bolt to 25 N.m (18 lb ft).




5. Connect the electrical connector to the fog lamp.

IMPORTANT: Only vertical tog lamp aiming can be performed.

6. Reaim the fog lights. Refer to Fog Lamp Aiming Procedure (Z-71, Limited Tahoe). (Z-71, Limited Tahoe)
