Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Diagram >> ABS Schematics (Export) >> IP, Wheel Speed Sensors, VIM, and EBCM

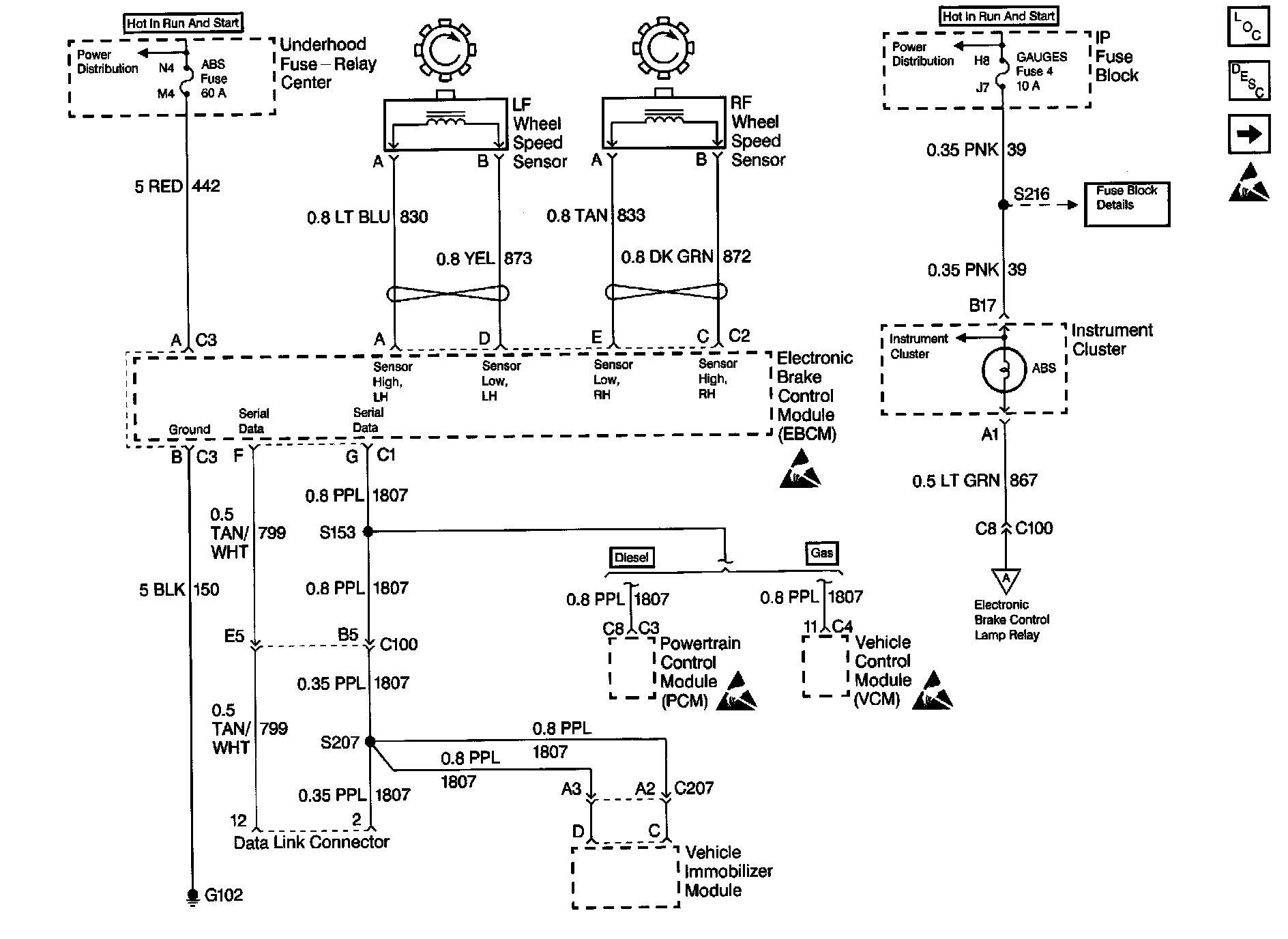

IP, Wheel Speed Sensors, VIM, and EBCM
