Blower Motor Resistor/Relay (Internal to Blower Motor)
Blower Motor Resistor/Relay (Internal to Blower Motor)

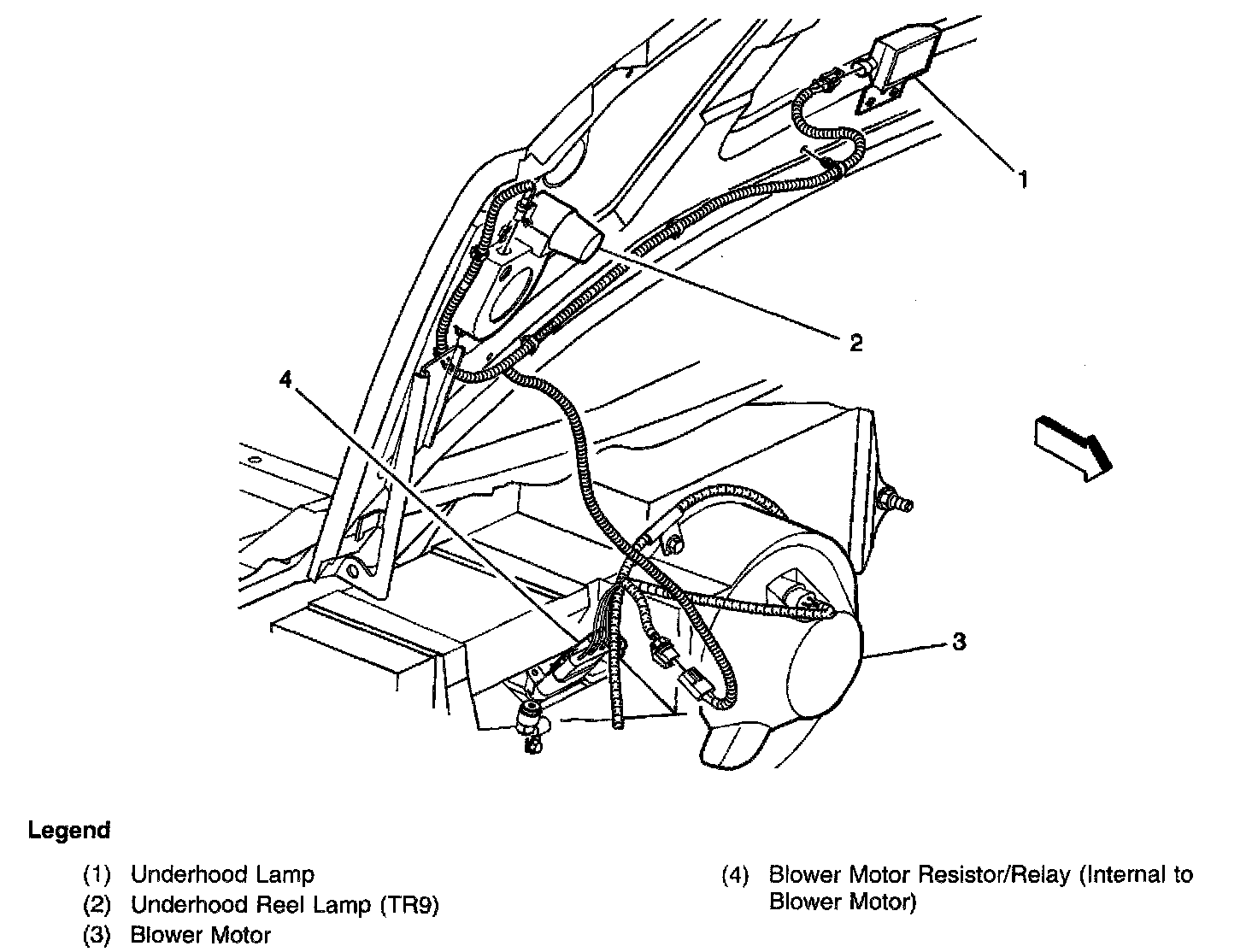

Underhood Lamp, Underhood Reel Lamp, Blower Motor, Blower Motor Resistor/Relay:
