Heater and A/C Controller C1 Connector
Heater and A/C Controller C1 Connector

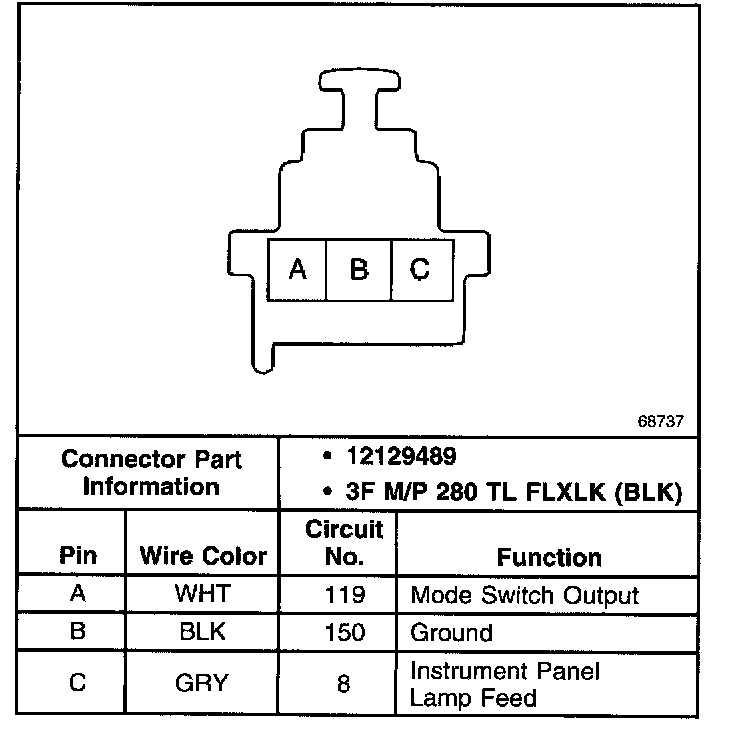

Heater And A/C Controller C1 Connector:
