Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Diagram >> ABS Schematics (Domestic) >> IP, PCM, EBCM, and VSS

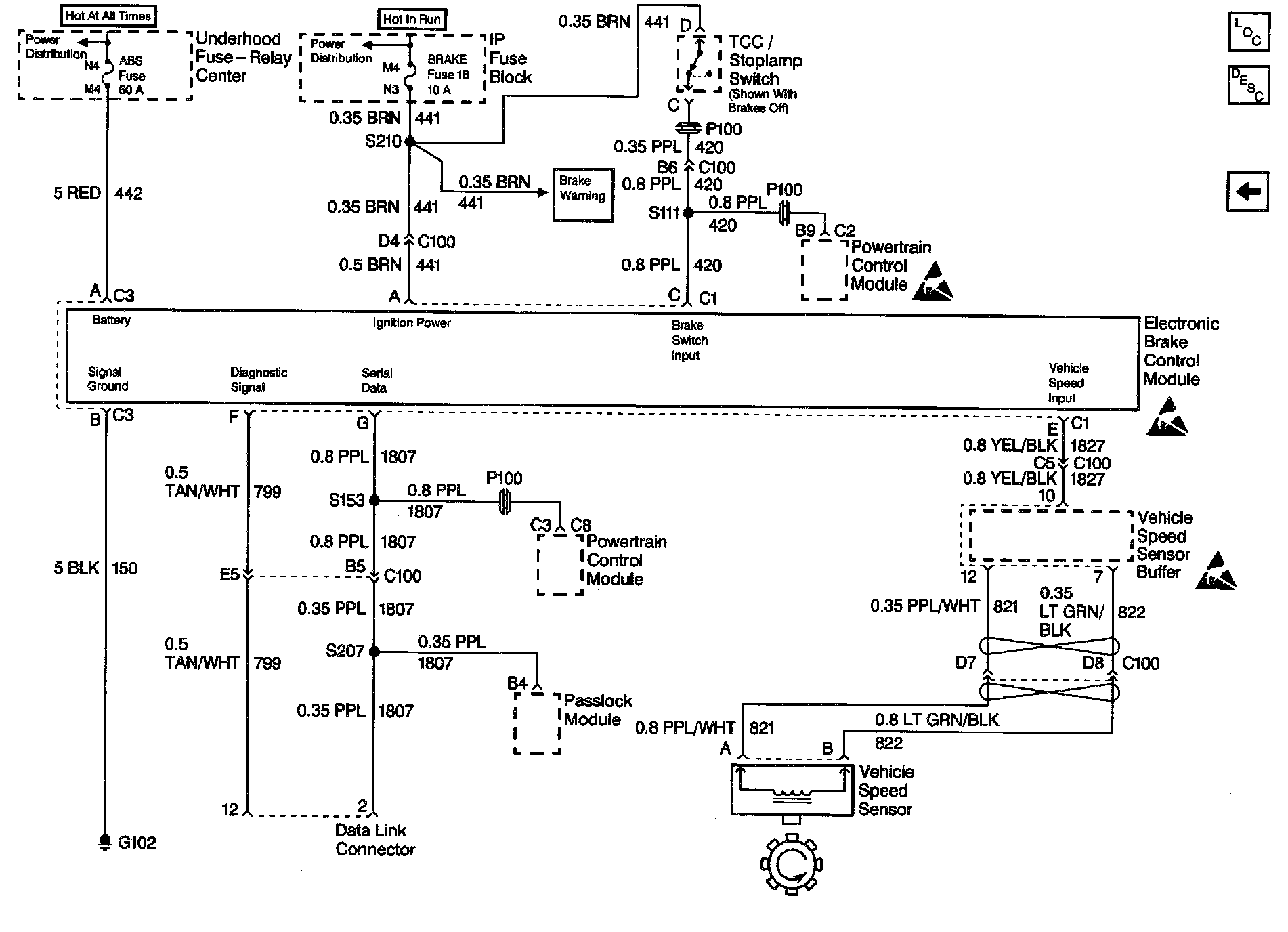

IP, PCM, EBCM, and VSS
