Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Diagram >> ABS Schematics (Export) >> PCM, ABS Lamp Relay, and VSS

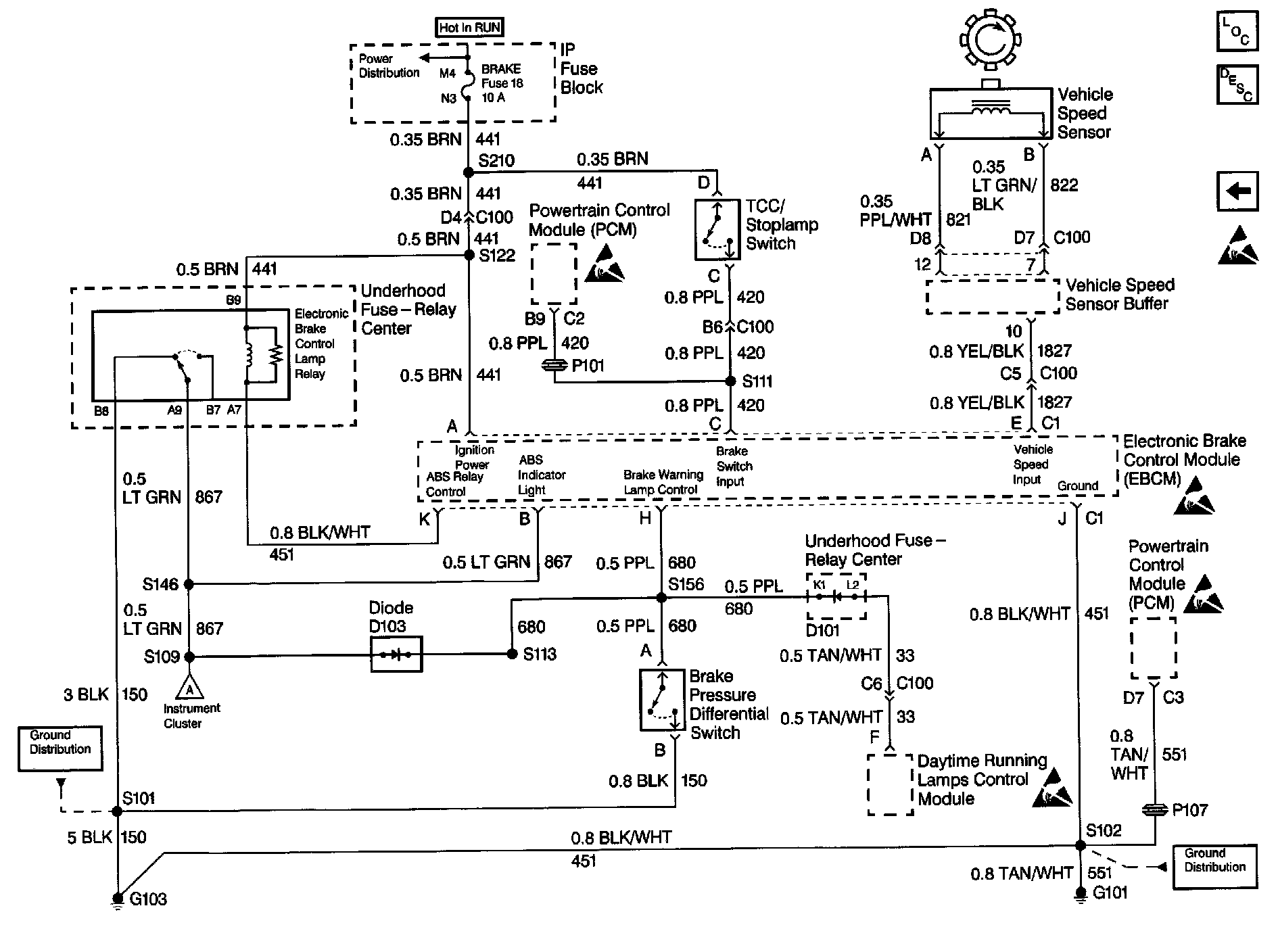

PCM, ABS Lamp Relay, and VSS
