Front Auxiliary HVAC Control Module

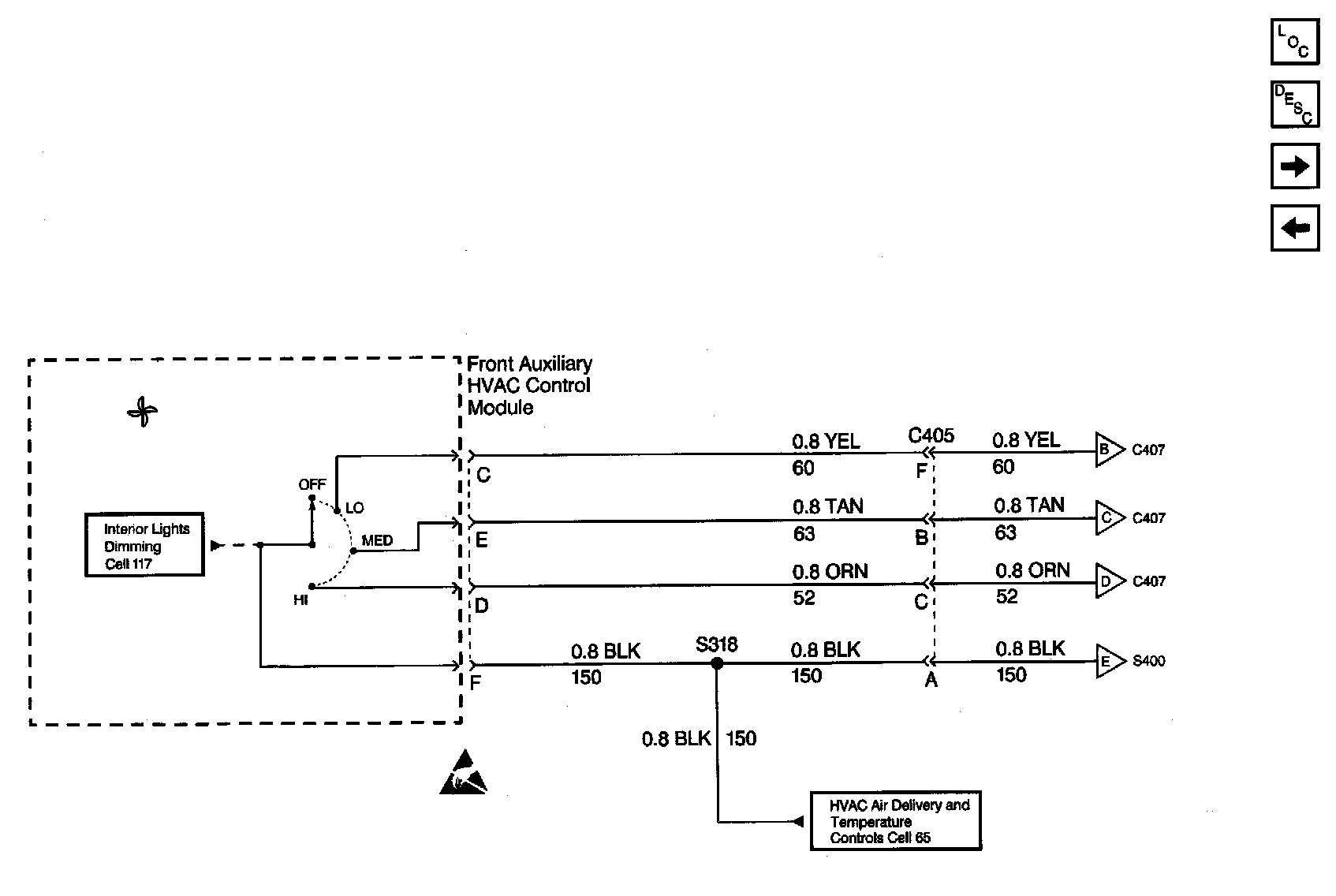

HVAC Blower Control Schematics: Front Auxiliary HVAC Control Module:
