DRL Diode, CNTRL Modules, DRL Relay, HDLP SW, PK Brake WARN SW

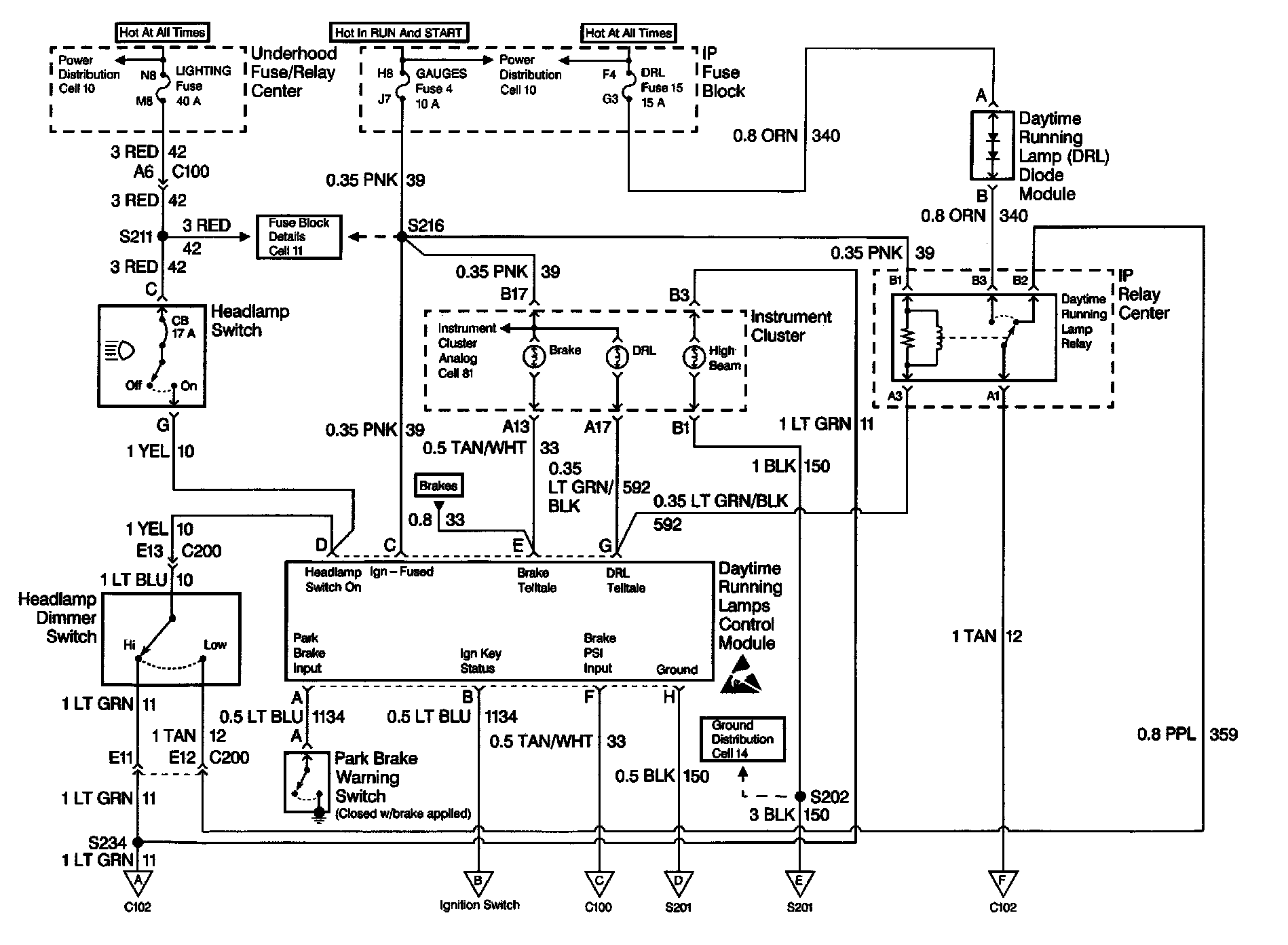

Headlights DRL Schematics (Domestic): DRL Diode Module, DRL Relay, DRL Control Module, Headlamp Switch, Park Brake Warning Switch:
