13. Crankshaft Balancer Removal

^ Tools Required
- J 39046 Crankshaft Balancer Remover

1. Remove the crankshaft pulley retaining bolts.





2. Remove the crankshaft pulley.

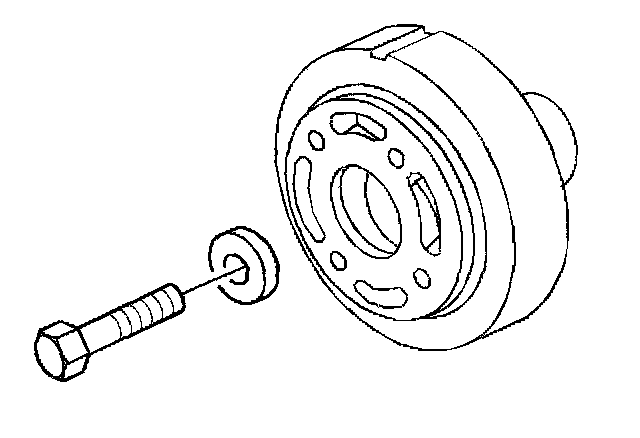

3. Remove the crankshaft balancer retaining bolt and washer,





4. Using the J 39046 remove the crankshaft balancer.
